SELECT A DIAGRAM

01 - Cover Sheet

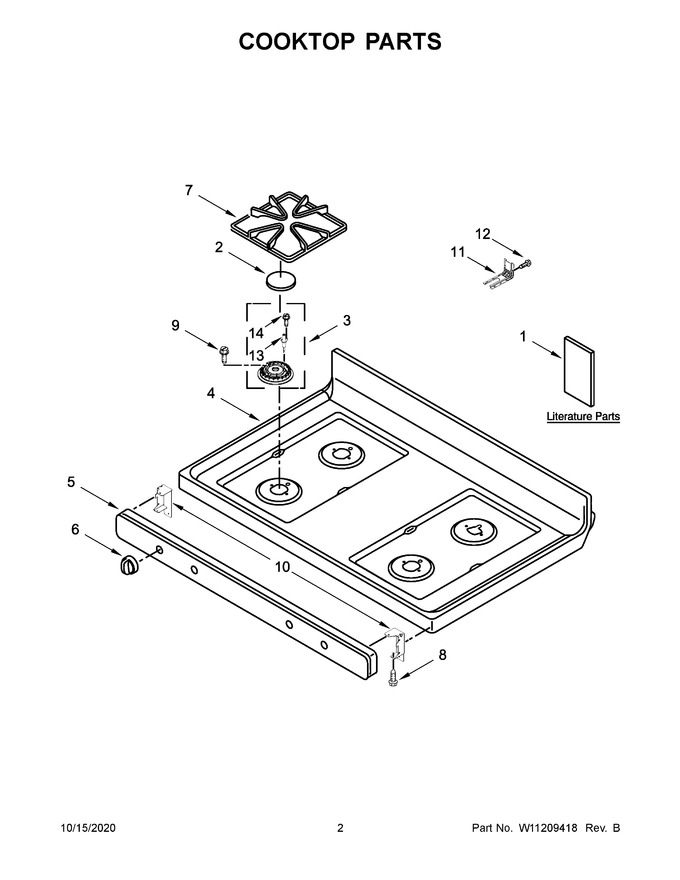

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11177375		Installation Instructions		Appelez-nous	-
2	WPW10183375		Set, Burner Cap (black)   (Replaces: W10183375)				$ 139.45
3	WPW10515455		Assembly, Burner (17.5k) (left Front, Right Front)   (Replaces: W10515455)				$ 101.22
4	W11133661		Cooktop (black)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 158.56
6	W11117407		Knob, Control (black)   (Replaces: W10844795)				$ 71.30
7	W10915784		Grate Kit (black)   (Replaces: W10682667)				$ 326.83
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.70
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
12	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
13	WPW10515459		Electrode (left Front, Right Front, Left Rear)   (Replaces: W11194809)			Immediately	$ 39.39
14	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.47
13A	WPW10515459		Electrode (right Rear)   (Replaces: W10515459)			Immediately	$ 39.39
1A	W11122565		Guide, Use & Care		Appelez-nous	-
1B	W10873899		Tech Sheet		Appelez-nous	-
1C	W10873901		Wiring Diagram		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454)				$ 104.17
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 89.36
4A	W11133660		Cooktop (white)		Appelez-nous	-
5A	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 261.52
6A	W11788674		Knob, Control (white)   (Replaces: W10844794)				$ 7.64
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	W10809927		Harness, Cooktop				$ 144.81
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 194.90
NI	W10842520		Harness, Main		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	3196896		Clip, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
