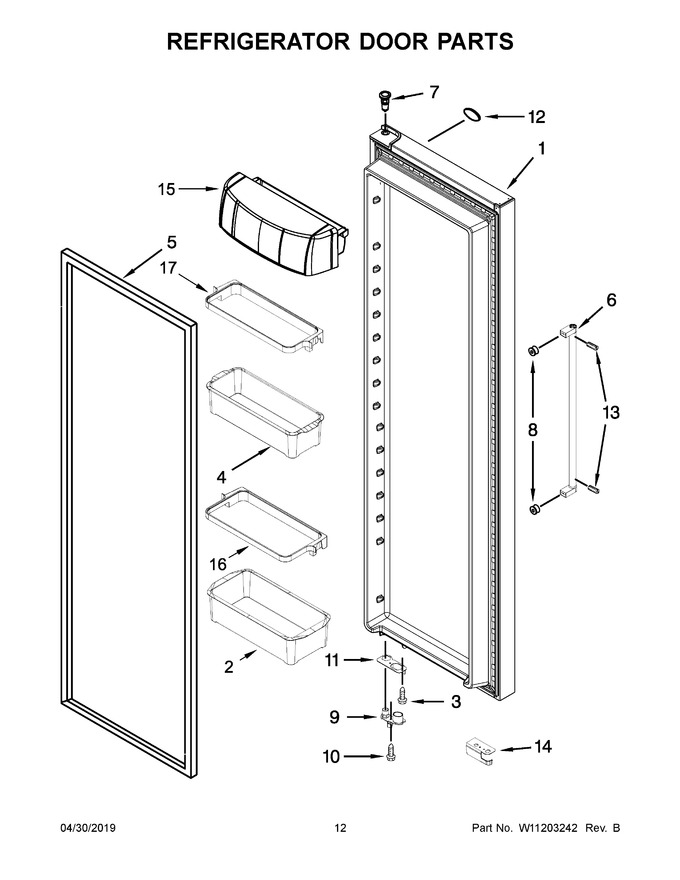

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10864694		Door, Refrigerator (includes Item 5) (black Stainless)   (Replaces: W10864694)				$ 1,320.16
2	WPW10316457		Bin, Gallon Door   (Replaces: W10316457)			Immediately	$ 88.82
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	WPW10316461		Bin, Shallow Door   (Replaces: W10316461)				$ 75.63
5	W11625680		Gasket, Door (black)   (Replaces: W10249914)		Appelez-nous	-
6	W11340150		Handle (stainless)   (Replaces: W11252159)				$ 180.17
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 7.34
8	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
9	WPW10257201		Closer, Upper Cam Door (black)   (Replaces: W10257201)				$ 11.64
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop   (Replaces: W10888898)				$ 72.22
12	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 68.58
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
14	W10789145		Cover, Door Stop (black)				$ 17.43
15	WPW10324760		Assembly, Utility Compartment   (Replaces: W10324760)				$ 77.04
16	WPW10494334		Frame, Gallon Door Bin   (Replaces: W10494334)				$ 240.27
17	WPW10494333		Frame, Shallow Door Bin   (Replaces: W10494333)				$ 240.53
1A	W10771436		Door, Refrigerator (includes Item 5) (stainless)		Appelez-nous	-
5A	W10355588		Gasket, Door (grey)   (Replaces: W10249918)				$ 287.29
