SELECT A DIAGRAM

01 - Cover Sheet

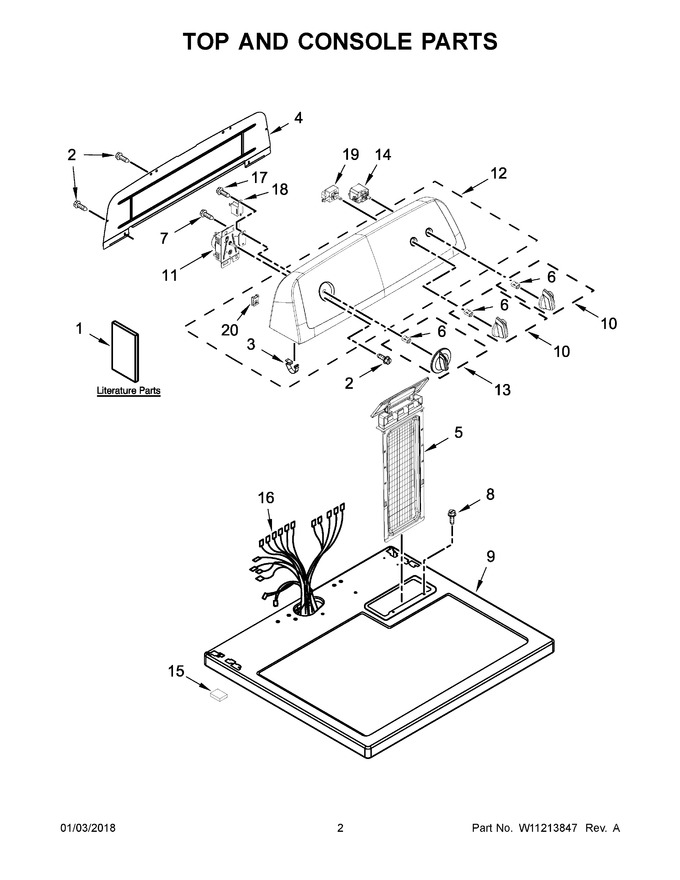

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11185731		Use And Care Guide		Appelez-nous	-
2	WP693995		Screw			Immediately	$ 6.80
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 119.15
5	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 49.17
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
7	WP90767		Screw			Immediately	$ 7.43
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
10	W11216550		Knob, Push To Start (white)   (Replaces: W11160348)			Immediately	$ 47.14
11	WPW10436303		Assembly, Timer   (Replaces: W10436303)			Immediately	$ 293.72
12	W11216548		Assembly, Console (white)   (Replaces: W11178662)				$ 348.10
13	W11216549		Assembly, Timer Knob (white)   (Replaces: W11158829)				$ 49.60
14	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 83.27
15	3389682		Spacer, Toe Panel				$ 8.31
16	W10450289		Harness, Main		Appelez-nous	-
17	WP90767		Screw			Immediately	$ 7.43
18	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
19	W11661755		Switch, Rotary   (Replaces: W10420747)				$ 31.23
20	W11213336		Nut, "u				$ 7.32
1A	W10848818		Installation Instructions		Appelez-nous	-
1B	W10185985		Wiring Diagram		Appelez-nous	-
