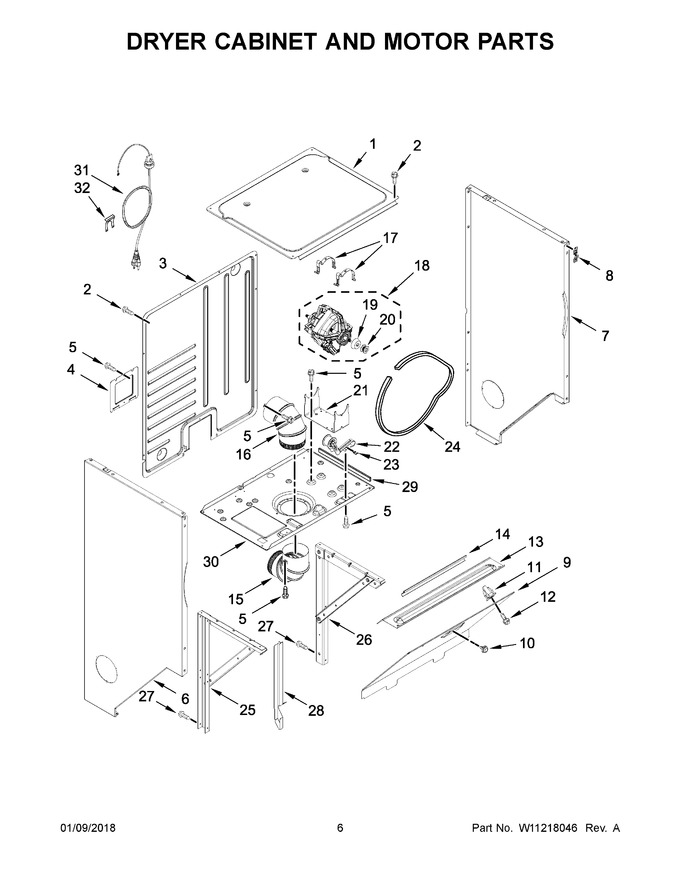

04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Washer Top And Control Parts


07 - Washer Cabinet Parts


08 - Washer Basket And Gear Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP692641		Top, Dryer				$ 243.46
2	5303010202		Screw				$ 5.15
3	W11134947		Panel, Rear		Appelez-nous	-
4	WP3394228		Cover, Terminal Block				$ 73.50
5	WP339631		Screw		Appelez-nous	-
6	WP3402293		Panel, Side (left Hand)				$ 328.80
7	WP3402287		Panel, Side (right Hand)				$ 329.76
8	W10854425		Clip, Front Panel			Immediately	$ 14.71
9	W11205493		Panel, Transition				$ 284.68
10	8572266		Bumper, Door			Immediately	$ 10.56
11	WP692400		Screw Grommet			Immediately	$ 7.22
12	WP693304		Screw				$ 7.60
13	W11174022		Panel, Closure   (Replaces: W11089868)		Appelez-nous	-
14	686770		Protector Support		Appelez-nous	-
15	3399603		Elbow, Lower		Appelez-nous	-
16	WP3399602		Elbow, Upper				$ 56.52
17	WPW10121316		Clamp, Motor Mount			Immediately	$ 24.26
18	WPW10448901		Motor, Main Drive (60 Hz)			Immediately	$ 308.84
19	WP3393657		Restrainer, Belt			Immediately	$ 125.17
20	8066051		Pulley, Motor				$ 106.90
21	696541		Base, Motor				$ 88.07
22	WP691366		Idler Assembly			Immediately	$ 20.22
23	WP692771		Nut, Idler Bracket To Base				$ 7.52
24	3394652		Belt, Drive			Immediately	$ 47.09
25	W11174025		Support, Dryer (left Hand)   (Replaces: W11050012)				$ 48.12
26	W11174024		Support, Dryer (right Hand)   (Replaces: W11050013)				$ 123.40
27	W11676450		Screw   (Replaces: 3400000)				$ 13.28
28	W11049216		Bracket, Rear Harness Cover		Appelez-nous	-
29	W11174026		Pad   (Replaces: W10560609)		Appelez-nous	-
30	3399632		Base, Dryer				$ 174.79
31	W11102173		Cord, Power		Appelez-nous	-
32	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.99
