SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts

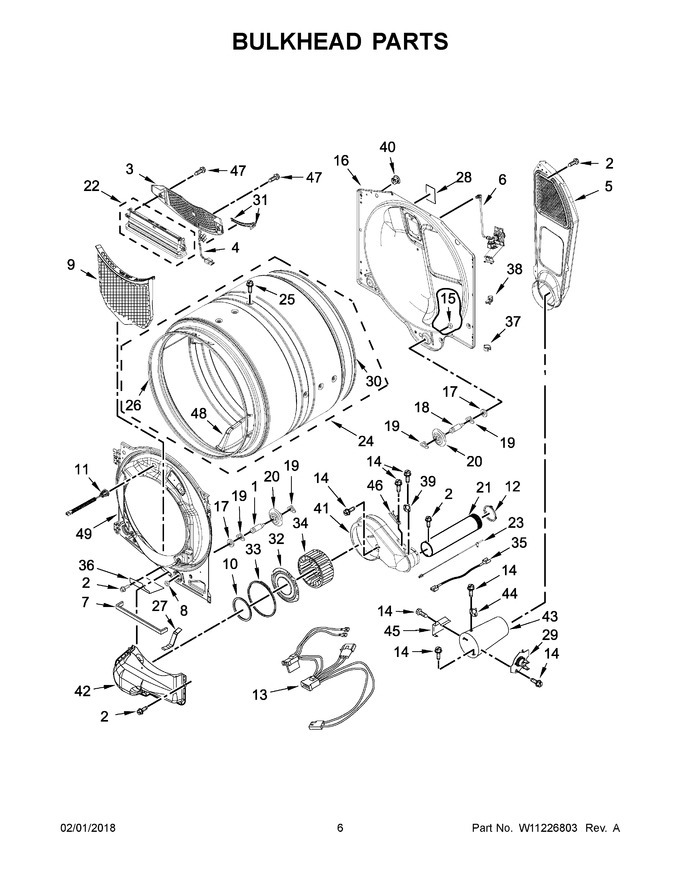

04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, Drum Roller - Right Hand Thread   (Replaces: W10359271)			Immediately	$ 55.99
2	WP488729		Screw			Immediately	$ 7.45
3	W11125442		Grill, Outlet   (Replaces: W10672682)				$ 212.80
4	WPW10298258		Harness, Sensor   (Replaces: W10298258)			Immediately	$ 7.06
5	WPW10293765		Assembly, Air Duct   (Replaces: W10295533)				$ 319.99
6	W11216837		Valve And Hose Assembly   (Replaces: W11157054)			Immediately	$ 153.66
7	W11676493		Seal, Housing Outlet   (Replaces: W10211950)			Immediately	$ 26.13
8	W11812294		Nut, Hex   (Replaces: 3934666)				$ 11.49
9	W11758174		Lint Screen (white)   (Replaces: W10516085)			Immediately	$ 48.51
10	WP697770		Seal, Plate Cover			Immediately	$ 7.44
11	W10460935		Assembly, Drum Light				$ 77.97
12	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 77.13
13	W10708958		Harness, Gas				$ 144.46
14	WP693995		Screw			Immediately	$ 6.80
15	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 9.01
16	W11299300		Bulkhead, Rear   (Replaces: WP3387809)				$ 330.86
17	W11236646		Washer   (Replaces: WPW10080960)			Immediately	$ 13.26
18	WPW10359272		Shaft, Drum Roller - Left Hand Thread   (Replaces: W10359272)			Immediately	$ 52.63
19	WPW10512946		Washer, Tri Ring			Immediately	$ 8.71
20	WPW10314173		Roller, Support			Immediately	$ 25.65
21	WPW10342188		Exhaust Pipe   (Replaces: W10342188)			Immediately	$ 125.46
22	W10906551		Assembly, Outlet Grill And Housing   (Replaces: W10672683)			Immediately	$ 301.98
23	W11396709		Thermistor, Gas Inlet   (Replaces: W10623852)			Immediately	$ 78.60
24	W10541657		Assembly, Drum (complete)			Immediately	$ 485.59
25	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
26	W11193479		Seal, Drum Front   (Replaces: W10521122)			Immediately	$ 20.36
27	W10414388		Clip, Lint Duct				$ 13.10
28	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 27.86
29	WP8573713		Cut-off, Thermal   (Replaces: 8573713)			Immediately	$ 65.26
30	280114		Seal, Drum   (Replaces: W10521118)			Immediately	$ 63.74
31	WP3387223		Sensor, Electrode			Immediately	$ 6.25
32	W10211901		Assembly, Collar				$ 84.67
33	W11821372		Seal, Blower Cover   (Replaces: W10211899)				$ 20.15
34	WP697772		Wheel, Blower   (Replaces: W10211915)			Immediately	$ 73.78
35	W10525140		Jumper, Tco High Limit		Appelez-nous	-
36	W11257251		Shield, Blower   (Replaces: W10128629)				$ 64.85
37	W10044599		Clip, Push To Connect				$ 13.50
38	WP3391018		Tie, Cable				$ 30.09
39	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 39.25
40	8529007		Plug, Rear Bulkhead				$ 70.98
41	WPW10211911		Housing, Blower   (Replaces: W10211911)			Immediately	$ 134.72
42	WPW10211896		Assembly, Lint Duct   (Replaces: W10211896)				$ 197.73
43	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 166.76
44	WP3391912		Thermostat, Hi Limit   (Replaces: 3391912)			Immediately	$ 128.29
45	WP338906		Sensor, Radiant			Immediately	$ 46.72
46	W10909685		Fuse, Thermal (91c)			Immediately	$ 79.59
47	W11590579		Screw   (Replaces: W10794806)				$ 13.26
48	W10280771		Baffle, Drum			Immediately	$ 103.79
49	W10673491		Bulkhead, Front			Immediately	$ 325.80

    View Diagram in Separate Window       Print Part List
