01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts

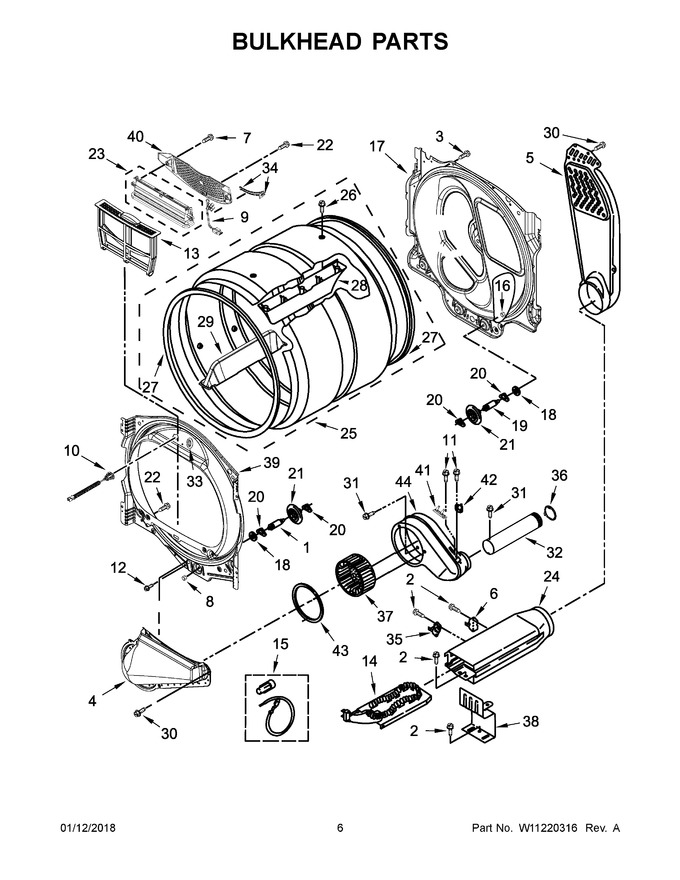

04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 3 | WP488729 | Screw |
|
Immediately | $ 7.45 | ||||
| 4 | W10868982 | Lint Duct Assembly |
|
$ 176.74 | |||||
| 5 | W11104017 | Duct, Inlet Assembly |
|
$ 127.40 | |||||
| 6 | 280148 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 60.85 | ||||
| 7 | WP3387230 | Screw |
|
Immediately | $ 7.69 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | W11161899 | Sensor Jumper, Moisture |
|
$ 14.30 | |||||
| 10 | WPW10629046 | Assembly, Drum Light (Replaces: W10629046) |
|
$ 74.67 | |||||
| 11 | WP693995 | Screw |
|
Immediately | $ 6.80 | ||||
| 12 | WP308685 | Screw |
|
Immediately | $ 7.08 | ||||
| 13 | W10859086 | Lint Screen (grey) (Replaces: W10608811) |
|
$ 79.83 | |||||
| 14 | WP3387747 | Element, Heater |
|
Immediately | $ 84.77 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11135007 | Bulkhead, Rear (Replaces: W10638203) |
|
$ 232.72 | |||||
| 18 | W11236646 | Washer (Replaces: WPW10080960) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Washer, Tri Ring |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support |
|
Immediately | $ 25.65 | ||||
| 22 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 23 | W11242876 | Assembly, Outlet Housing (Replaces: W10608812) |
|
$ 99.23 | |||||
| 24 | W10802681 | Assembly, Weld Heater Box (Replaces: W10891205) |
|
Immediately | $ 180.98 | ||||
| 25 | W10626460 | Assembly, Drum |
|
$ 224.55 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | W11189144 | Seal, Drum |
|
$ 20.42 | |||||
| 28 | W10767074 | Baffle, Drum High |
|
$ 34.01 | |||||
| 29 | W10767090 | Baffle, Drum Low |
|
$ 35.21 | |||||
| 30 | WP693995 | Screw |
|
Immediately | $ 6.80 | ||||
| 31 | WP90767 | Screw |
|
Immediately | $ 7.43 | ||||
| 32 | W10608817 | Pipe, Exhaust (Replaces: W11189139) |
|
$ 69.37 | |||||
| 33 | W10491983 | Cap |
|
- | |||||
| 34 | W11165163 | Sensor, Electrode (Replaces: W10608814) |
|
$ 89.38 | |||||
| 35 | WP8557403 | Thermostat, High Limit (Replaces: 8557403) |
|
Immediately | $ 85.90 | ||||
| 36 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| 37 | WP697772 | Wheel, Blower |
|
Immediately | $ 73.78 | ||||
| 38 | 8066099 | Bracket, Heater Box |
|
$ 24.13 | |||||
| 39 | W10861007 | Bulkhead, Front |
|
$ 199.60 | |||||
| 40 | W10608813 | Grille, Outlet |
|
$ 207.14 | |||||
| 41 | W10909685 | Fuse, Thermal (91c) |
|
Immediately | $ 79.59 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | W10868675 | Seal, Lint Duct |
|
$ 70.61 | |||||
| 44 | W11246350 | Housing, Blower (Replaces: W10667717) |
|
Immediately | $ 88.67 |
