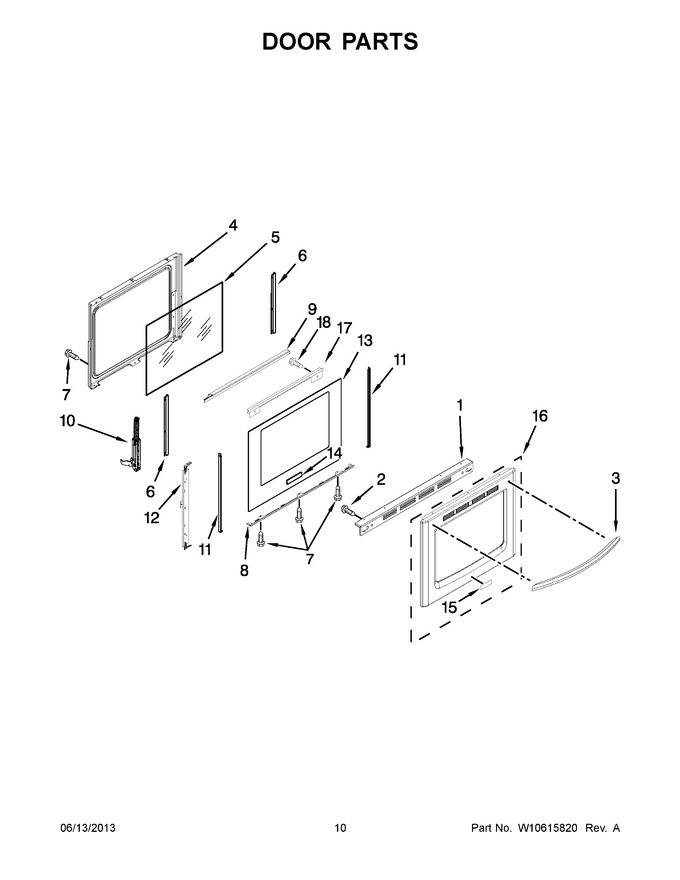

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10335331 | Trim, Top Vent (white) (Replaces: W10335331) |
|
Immediately | $ 112.82 | ||||
| 2 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 3 | W10284917 | Handle, Door (white) |
|
$ 246.39 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 6 | W10137382 | Clip, Glass |
|
Immediately | $ 43.58 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 8 | WPW10333990 | Trim, Door Bottom (white) (Replaces: W10333990) |
|
Immediately | $ 72.20 | ||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 10 | WPW10440013 | Hinge, Active Door (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 11 | W10334003 | Trim, Door Side (white) |
|
Immediately | $ 80.72 | ||||
| 12 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 13 | WPW10495962 | Glass, Outer (white) (Replaces: W10495962) |
|
$ 362.49 | |||||
| 14 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 15 | WPW10243393 | Badge (white) (Replaces: W10243393) |
|
$ 62.98 | |||||
| 16 | WPW10490829 | (stainless Model) (Replaces: W10490829) |
|
$ 341.68 | |||||
| 17 | W10339814 | Trim, Vent (black (stainless Model)) |
|
$ 139.33 | |||||
| 18 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 11A | W10334004 | Trim, Door Side (black) |
|
$ 210.38 | |||||
| 13A | WPW10495963 | Glass, Outer (black) (Replaces: W10495963) |
|
$ 145.91 | |||||
| 13B | WPW10495964 | Glass, Outer (stainless) (Replaces: W10495964) |
|
$ 335.56 | |||||
| 15A | WPW10243392 | Badge (black) (Replaces: W10243392) |
|
$ 66.33 | |||||
| 15B | WPW10243391 | Badge (stainless) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 1A | W10294855 | Trim, Top Vent (black) |
|
Immediately | $ 127.84 | ||||
| 3A | W10284916 | Handle, Door (black) |
|
$ 222.89 | |||||
| 3B | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 301.15 | |||||
| 8A | W10334031 | Trim, Door Bottom (black) |
|
$ 70.07 |
