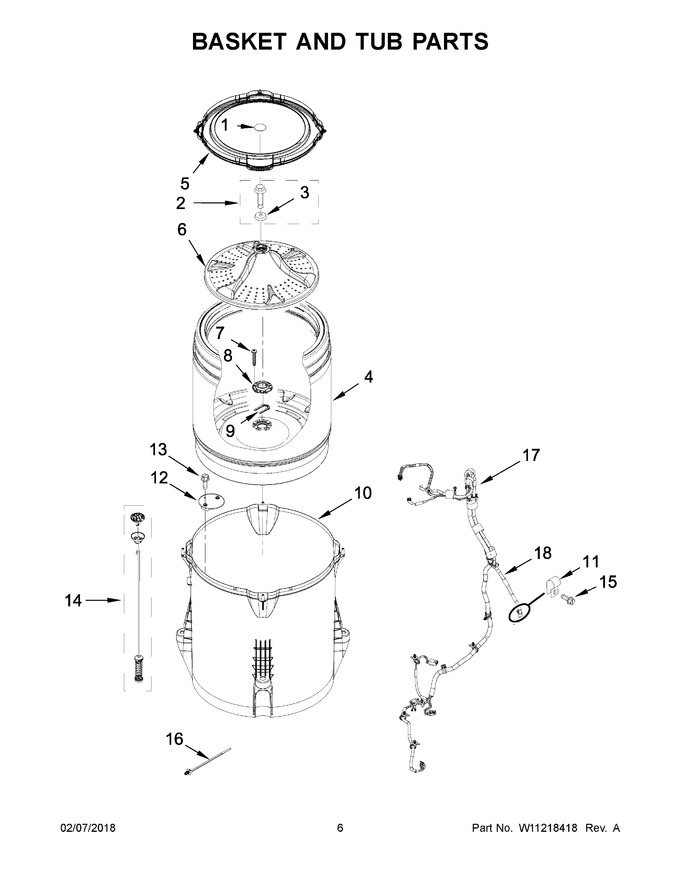

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10305259 | Cap, Impeller (Replaces: W10305259) |
|
$ 21.27 | |||||
| 2 | W10772621 | Screw And Washer |
|
Immediately | $ 4.77 | ||||
| 3 | WP3949550 | Washer |
|
Immediately | $ 9.98 | ||||
| 4 | W10910409 | Basket Assembly |
|
$ 278.28 | |||||
| 5 | W11550886 | Tub Ring (Replaces: W11043544) |
|
Immediately | $ 103.70 | ||||
| 6 | WPW10215115 | Impeller (washplate) (Replaces: W10215115) |
|
$ 281.99 | |||||
| 7 | WP8533953 | Screw |
|
Immediately | $ 6.80 | ||||
| 8 | W10528947 | Hub - Driven, Basket |
|
Immediately | $ 40.16 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: WPW10402178) |
|
Immediately | $ 11.67 | ||||
| 10 | W10371566 | Tub (Replaces: W10238320) |
|
$ 320.71 | |||||
| 11 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 12 | WPW10215093 | Filter, Drain Pump |
|
$ 58.73 | |||||
| 13 | WP8533928 | Screw |
|
Immediately | $ 7.43 | ||||
| 14 | W11217817 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11159470) |
|
Immediately | $ 204.31 | ||||
| 15 | WPW10109200 | Screw |
|
Immediately | $ 7.92 | ||||
| 16 | W10339680 | Cable Tie |
|
- | |||||
| 17 | W11233718 | Harness, Lower (Replaces: W11156559) |
|
$ 149.88 | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: W10236981) |
|
Immediately | $ 78.00 |
