01 - Cover Sheet
02 - Top And Console Parts

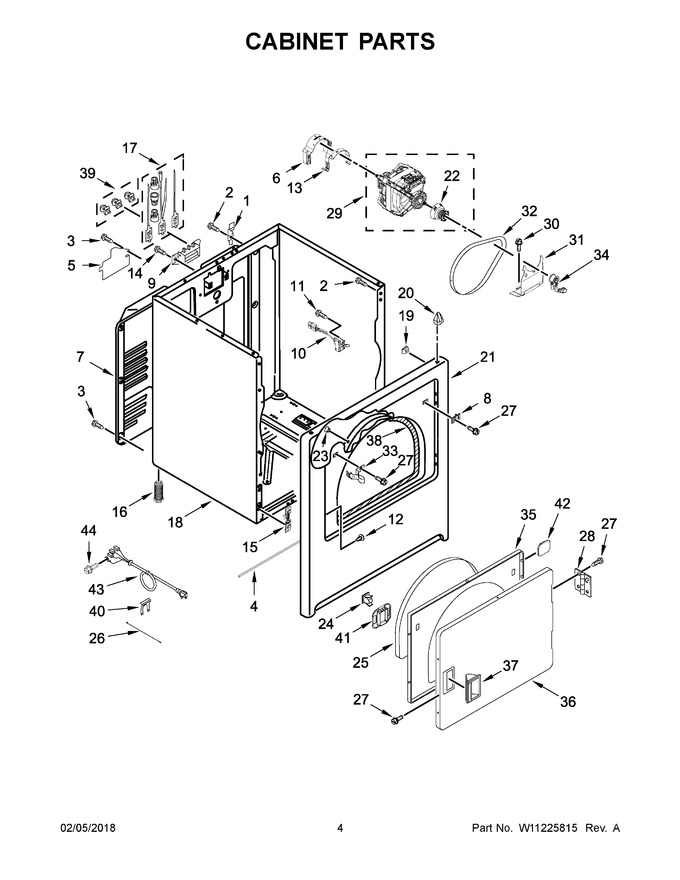

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 7.39 | |||||
| 2 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 3 | WP693995 | Screw |
|
Immediately | $ 6.80 | ||||
| 4 | W11596046 | Seal, Spill Guard (Replaces: W11172310) |
|
Immediately | $ 48.68 | ||||
| 5 | W11298298 | Cover, Terminal Block (Replaces: W10571619) |
|
$ 84.52 | |||||
| 6 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 7 | 280043 | Panel, Rear (Replaces: W10571724) |
|
$ 322.53 | |||||
| 8 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 7.32 | ||||
| 9 | WP3397659 | Block, Terminal |
|
$ 21.75 | |||||
| 10 | WP3406107 | Switch, Door (Replaces: W10569603) |
|
Immediately | $ 28.08 | ||||
| 11 | WP3395530 | Screw |
|
$ 7.71 | |||||
| 12 | WP3404413 | Plug, Hole (white) (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 13 | WPW10121316 | Clamp, Motor Mount |
|
Immediately | $ 24.26 | ||||
| 14 | WP339631 | Screw |
|
- | |||||
| 15 | W10854425 | Clip, Front Panel |
|
Immediately | $ 14.71 | ||||
| 16 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 22.22 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 19 | WP98234 | Clip, Ground |
|
Immediately | $ 10.76 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 18.43 | ||||
| 21 | W10806345 | Panel, Front (white) (Replaces: W10664697) |
|
$ 219.94 | |||||
| 22 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 45.92 | ||||
| 23 | 279220 | Clip, Felt Pad |
|
$ 21.20 | |||||
| 24 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 23.90 | ||||
| 25 | W10861521 | Seal, Door (Replaces: W10730752) |
|
Immediately | $ 61.07 | ||||
| 26 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 28 | WPW10362431 | Assembly, Hinge And Pin (Replaces: W10362431) |
|
Immediately | $ 7.45 | ||||
| 29 | 279827 | Assembly, Motor (Replaces: W10396029) |
|
Immediately | $ 195.48 | ||||
| 30 | 3400500 | Bolt |
|
Immediately | $ 12.64 | ||||
| 31 | WP348780 | Base, Motor |
|
Immediately | $ 114.89 | ||||
| 32 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 34 | WP691366 | Idler Assembly |
|
Immediately | $ 20.22 | ||||
| 35 | WPW10463967 | Door, Inner (Replaces: W10463967) |
|
$ 207.63 | |||||
| 36 | W10861224 | Door, Front (white) (Replaces: W10714510) |
|
$ 242.12 | |||||
| 37 | W10861225 | Handle, Door (white) (Replaces: W10714516) |
|
Immediately | $ 48.83 | ||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 83.41 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 40 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 41 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 22.91 | ||||
| 42 | W11173656 | Cover, Door Catch |
|
$ 7.38 | |||||
| 43 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 78.30 | ||||
| 44 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| NI | W11025920 | Foot - Package Of 4 (not Included) (Replaces: W10570316) |
|
Immediately | $ 22.22 |
