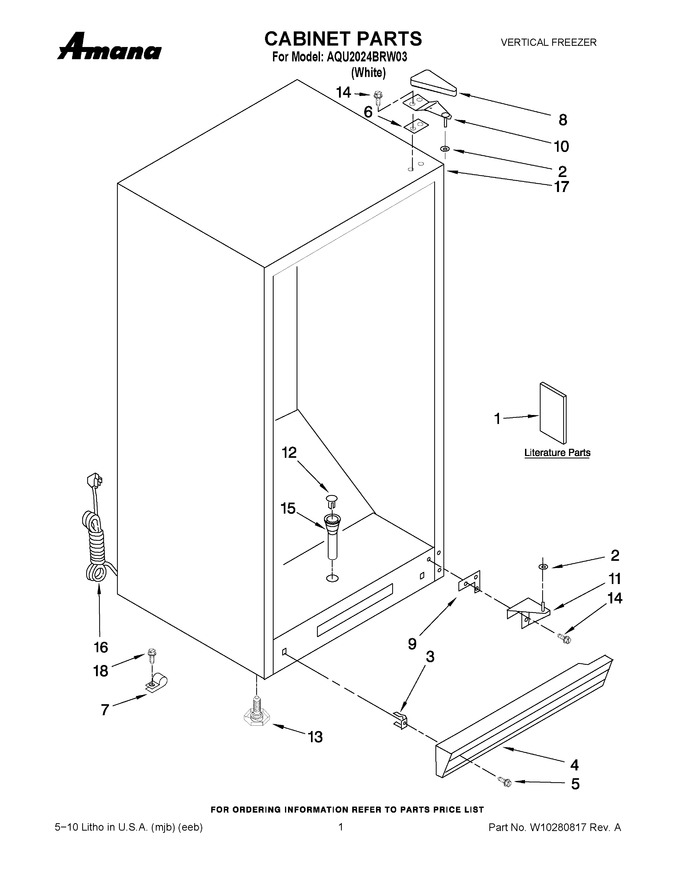

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10294508 | Energy Label |
|
- | |||||
| 1 | W10279026 | Owners Manual |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 9.51 | |||||
| 3 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 10.35 | ||||
| 4 | 8210310 | Grille |
|
- | |||||
| 5 | WP489478 | Screw (Replaces: 4356805) |
|
$ 7.36 | |||||
| 6 | 4390489 | Shim, Top |
|
$ 6.57 | |||||
| 7 | 488946 | Clamp (Replaces: 4356643) |
|
$ 19.32 | |||||
| 8 | 4357279 | Cover, Hinge |
|
$ 46.56 | |||||
| 9 | 4390489 | Shim, Bottom |
|
$ 6.57 | |||||
| 10 | 2-81016-105 | Top, Hinge (Replaces: 8210222) |
|
$ 38.92 | |||||
| 11 | 8210223 | Bottom Hinge |
|
- | |||||
| 12 | 4357019 | Drain Plug |
|
- | |||||
| 13 | WP3-82710-001 | Leg, Leveller (Replaces: W10177675) |
|
Immediately | $ 18.29 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 15.73 | |||||
| 15 | W10164544 | Grommet, Drain |
|
- | |||||
| 16 | 8210375 | Power Cord |
|
- | |||||
| 17 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 18 | 4356853 | Screw |
|
- |
