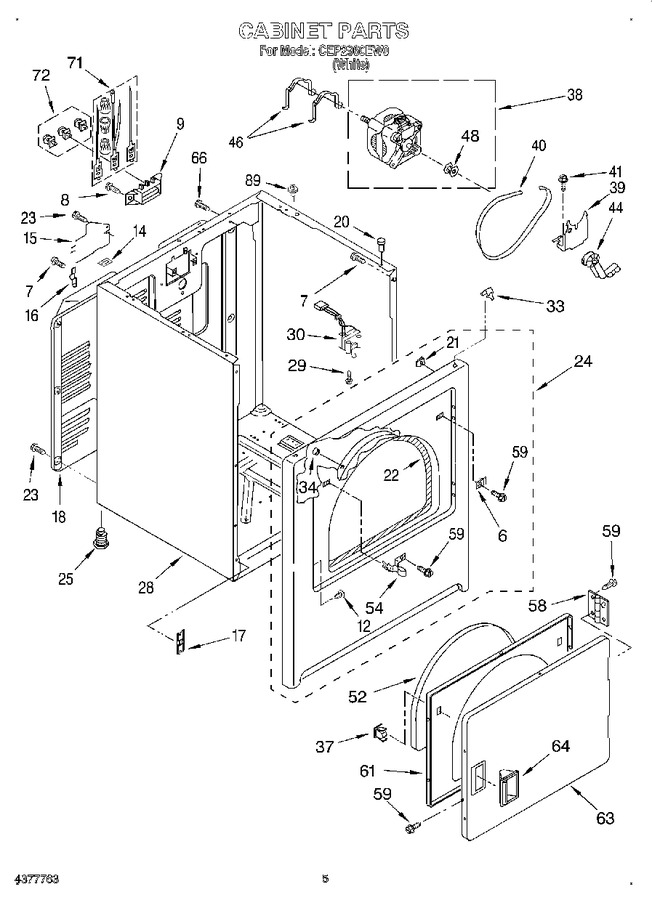

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | WP3403630 | Plug, Strike Hole (Replaces: 3403630) |
|
$ 7.12 | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 8 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 9 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 21.75 | |||||
| 12 | WP3404413 | Plug, Hinge Hole (4) (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 14 | 18849 | Pad, Top Hinge |
|
$ 19.04 | |||||
| 15 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.39 | |||||
| 17 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 18 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 322.53 | |||||
| 20 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 21 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 22 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 83.41 | ||||
| 23 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 24 | W10806345 | Front Panel Assembly (Replaces: 3403444) |
|
$ 219.94 | |||||
| 25 | 49621 | Foot (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 25 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 28 | 3399585 | Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39) |
|
- | |||||
| 29 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 30 | WP3406105 | Switch, Door (Replaces: 3406104) |
|
Immediately | $ 33.21 | ||||
| 33 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 11.98 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 21.20 | |||||
| 37 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 38 | 279827 | Motor Assembly 60 Hz. (Replaces: 3395652) |
|
Immediately | $ 195.48 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 660997) |
|
Immediately | $ 16.34 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 44 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 46 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 7.40 | |||||
| 46 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 46 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 7.40 | |||||
| 48 | WP8066184 | Pulley, 60 Hz. (Replaces: 3401143) |
|
Immediately | $ 45.92 | ||||
| 52 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 61.07 | ||||
| 54 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 58 | WPW10362431 | Hinge & Pin Assembly (2) (Replaces: 3405514) |
|
Immediately | $ 7.45 | ||||
| 59 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 61 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 187.84 | |||||
| 63 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 242.33 | |||||
| 64 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 71.83 | |||||
| 66 | W10850756 | Screw, 10-32 X 1/2 (grounding) (Replaces: 697776) |
|
$ 7.38 | |||||
| 71 | 279318 | Terminal, Tinned & Brass (3) |
|
Immediately | $ 95.44 | ||||
| 72 | 279393 | Screw Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 89 | 356837 | Locator, Top |
|
- |
