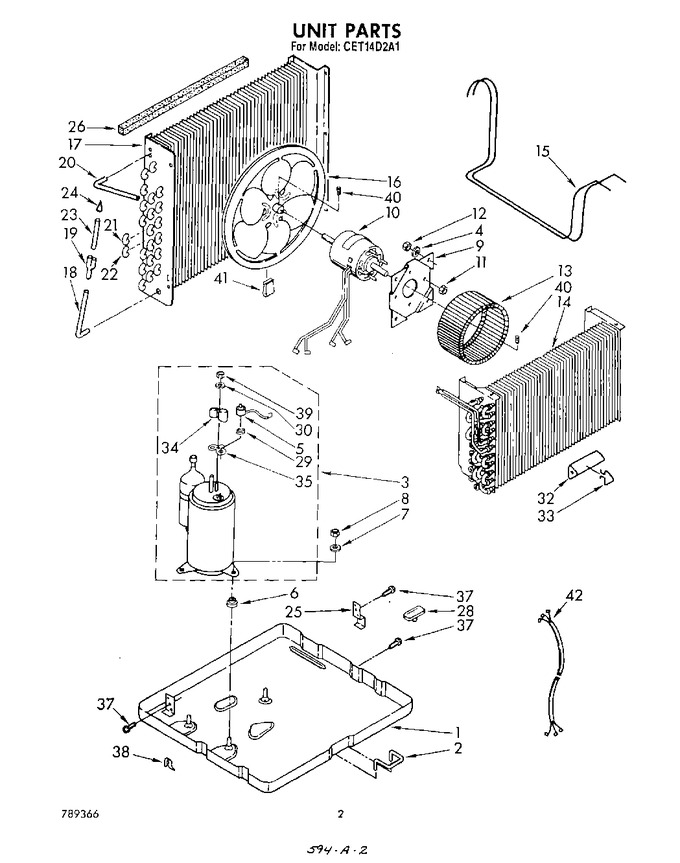

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951381		Base, Unit		Appelez-nous	-
2	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
3	876799		Compressor		Appelez-nous	-
4	470280		Washer (3)		Appelez-nous	-
5	953100		Overload		Appelez-nous	-
6	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
7	489108		Washer (3)		Appelez-nous	-
8	858122		Nut, Lock (3)		Appelez-nous	-
9	998024		Plate, Fan Motor		Appelez-nous	-
10	952058		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
12	858122		Nut, Lock		Appelez-nous	-
13	852067		Wheel, Blower		Appelez-nous	-
14	949606		Evaporator		Appelez-nous	-
15	951385		Tube, Restrictor (2) (33.0`` Length)		Appelez-nous	-
16	949124		Fan, Blade		Appelez-nous	-
17	951386		Condenser		Appelez-nous	-
18	950814		Tube, 90~ Connect		Appelez-nous	-
19	947364		Tube, Flow Divider		Appelez-nous	-
20	475635		Tube, 90~ Connect		Appelez-nous	-
21	855199		Bend, Return (12)		Appelez-nous	-
22	854624		Bend, Return (16)		Appelez-nous	-
23	484230		Tube, Outlet (includes Illus. 24)		Appelez-nous	-
24	49599		Strainer, Tube		Appelez-nous	-
25	647824		Condenser, Support (r.s.)		Appelez-nous	-
26	WP854334		Seal   (Replaces: 854681)				$ 12.55
28	647850		Cup, Condensate		Appelez-nous	-
29	950032		Spring, Overload		Appelez-nous	-
30	WP950027		Gasket, Nut   (Replaces: 950027)				$ 5.20
32	484238		Anticipator, Temperature		Appelez-nous	-
33	642080		Clip, Anticipator		Appelez-nous	-
34	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
35	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
37	WP489069		Screw, Sheet Metal No.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
38	642684		Clamp, Restrictor Tube		Appelez-nous	-
39	WP950027		Retainer, Cover   (Replaces: 950027)				$ 5.20
40	595085		Setscrew, 5/16-24 X 1/4		Appelez-nous	-
41	876034		Clip, Balancing		Appelez-nous	-
42	978030		Valve, Access (3/4``)				$ 123.53
42	978026		Valve, Access (5/16``)			Immediately	$ 121.04
42	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
42	978028		Valve, Access (1/2)		Appelez-nous	-
42	978029		Valve Access (5/8``)				$ 93.85
42	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
42	484136		Harness, Wiring		Appelez-nous	-
42	484310		Epoxy, Aluminum Repair		Appelez-nous	-
42	505168		Tape, No Drip (for Sweating Tubes)		Appelez-nous	-
42	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
