SELECT A DIAGRAM

02 - Unit


03 - Air Flow And Control , Lit/optional


04 - Cabinet


05 - Accessory Kit

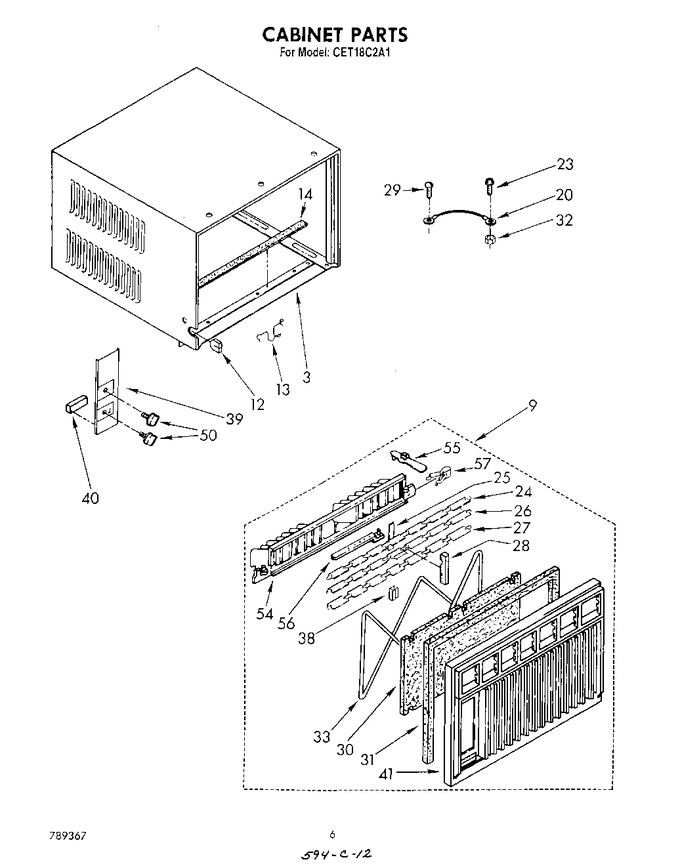

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	997280		Cabinet		Appelez-nous	-
9	953024		Front, Cabinet (complete)		Appelez-nous	-
12	647849		Grommet, Wiring		Appelez-nous	-
13	852272		Clip, Cabinet Front (3)		Appelez-nous	-
14	852220		Seal, Bottom		Appelez-nous	-
23	488853		Screw, 8-32 X 3/8		Appelez-nous	-
24	953061		Louver, Horizontal (4)		Appelez-nous	-
25	855998		Retainer (4)		Appelez-nous	-
26	953059		Louver, Horizontal (handle)		Appelez-nous	-
27	953060		Louver, Horizontal (relieved)		Appelez-nous	-
28	853772		Rack, Louver		Appelez-nous	-
29	488854		Screw, 8-32 X 3/8		Appelez-nous	-
30	649958		Filter, Air		Appelez-nous	-
31	649725		Seal, Front (top & Sides)		Appelez-nous	-
31	649726		Seal, Front (bottom)		Appelez-nous	-
32	WP486255		Nut, No. 8-32   (Replaces: 486529)				$ 5.82
33	476707		Retainer, Filter		Appelez-nous	-
38	855999		Clip, Retainer (4)		Appelez-nous	-
39	953004		Plate, Escutcheon		Appelez-nous	-
40	469175		Spacer, Escutcheon Plate (2)		Appelez-nous	-
41	953018		Frame, Front		Appelez-nous	-
50	953054		Knob, Control (2)		Appelez-nous	-
54	953064		Louver, Vertical		Appelez-nous	-
55	953062		Handle, Vertical Louver (2)		Appelez-nous	-
56	953063		Link, Vertical Louver (2)		Appelez-nous	-
57	641484		Spring, Detent (2)				$ 150.14

    View Diagram in Separate Window       Print Part List
