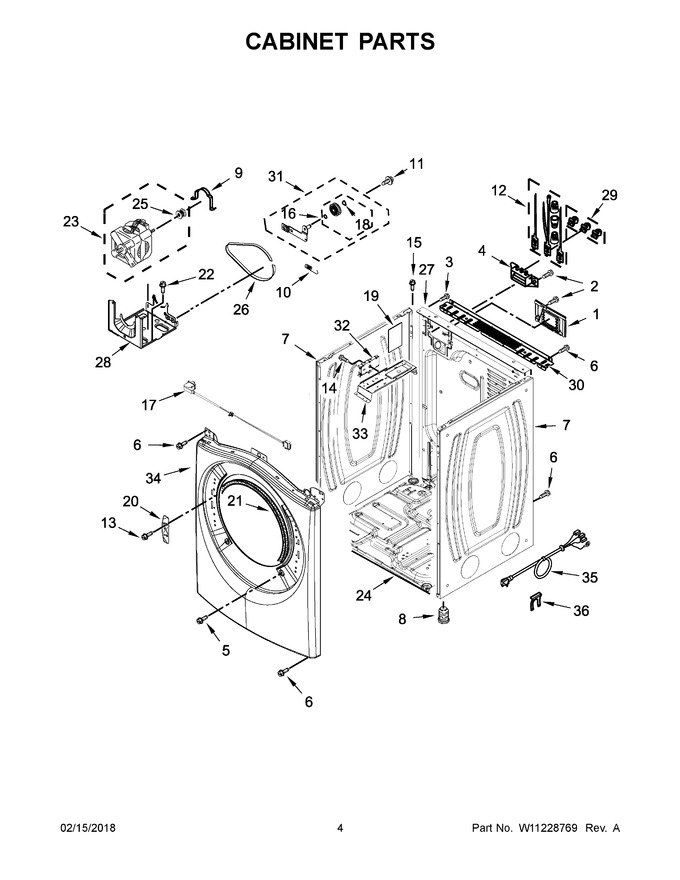

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 93.64 | |||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 4 | WP3397659 | Block, Terminal |
|
$ 21.75 | |||||
| 5 | WP308685 | Screw |
|
Immediately | $ 7.08 | ||||
| 6 | WP488729 | Screw |
|
Immediately | $ 7.45 | ||||
| 7 | W11233548 | Panel, Side (white) (Replaces: W10468495) |
|
$ 235.20 | |||||
| 8 | 49621 | Foot, Dryer |
|
Immediately | $ 7.70 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw |
|
$ 7.76 | |||||
| 12 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 13 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 14 | WP693995 | Screw |
|
Immediately | $ 6.80 | ||||
| 15 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 16 | 279640 | Assembly, Pulley |
|
Immediately | $ 29.26 | ||||
| 17 | WPW10350906 | Assembly, Door Switch (Replaces: W10350906) |
|
Immediately | $ 73.34 | ||||
| 18 | WPW10512946 | Washer, Tri Ring |
|
Immediately | $ 9.14 | ||||
| 19 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 20 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 39.47 | |||||
| 21 | WP3387242 | Seal, Front Panel |
|
Immediately | $ 29.24 | ||||
| 22 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 23 | W11511154 | Assembly, Motor (Replaces: W10806758) |
|
Immediately | $ 254.27 | ||||
| 24 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 328.82 | |||||
| 25 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 46.15 | ||||
| 26 | 661570V | Belt, Drive |
|
Immediately | $ 29.53 | ||||
| 27 | W10487430 | Panel, Rear |
|
Immediately | $ 321.41 | ||||
| 28 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 29 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 30 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 31 | W10837240 | Assembly, Idler |
|
Immediately | $ 32.20 | ||||
| 32 | W11537215 | Control Board (Replaces: W10847936) |
|
Immediately | $ 321.70 | ||||
| 33 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 34 | W10363953 | Front Panel (includes Door Hinge Bracket) (white) |
|
$ 182.23 | |||||
| 35 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 82.21 | ||||
| 36 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 34A | WPW10463309 | Front Panel (includes Door Hinge Bracket) (chrome Shadow) (Replaces: W10463309) |
|
$ 319.48 | |||||
| 7A | W11315726 | Panel, Side (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 289.48 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) |
|
Immediately | $ 7.70 | ||||
| NI | W10323246 | Dryer Exhaust Kit Not Included, Kit, 4-way Vent |
|
Immediately | $ 80.96 |
