SELECT A DIAGRAM

01 - Bulkhead

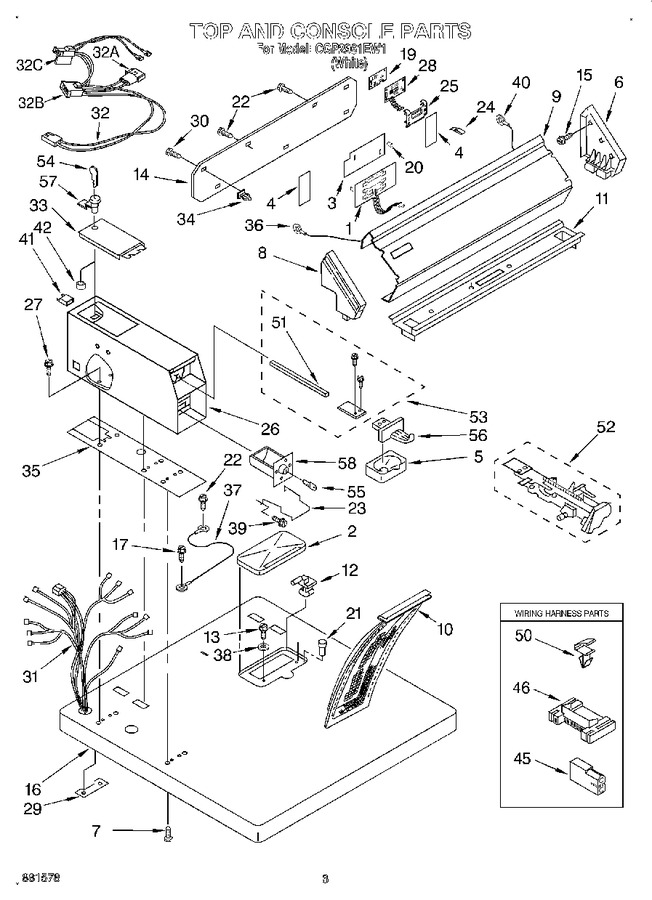

02 - Top And Console


03 - Cabinet


04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3950772		Switch, Membrane				$ 115.59
2	688150		Cover, Lint Screen		Appelez-nous	-
3	3950773		Backer Plate		Appelez-nous	-
4	3950775		Backer Plate, Side (2)		Appelez-nous	-
5	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 70.12
6	3949737		Cap, End (r.h.)				$ 49.53
7	W10841059		Screw, Thread Cutting   (Replaces: 98445)		Appelez-nous	-
8	3949734		Cap, End (l.h.)		Appelez-nous	-
9	3402796		Panel, Control		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 41.46
11	3949733		Bracket, Control		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 691194)				$ 7.30
12	WPW10044470		Hinge, R.h.   (Replaces: 691193)				$ 7.30
13	W11693756		Screw, 8-15 X 3/8   (Replaces: 688983)			Immediately	$ 13.28
14	3387978		Panel, Rear		Appelez-nous	-
15	WPW10109200		Screw, 13-16 X 5/8   (Replaces: 97787)			Immediately	$ 7.92
16	3402832		Top		Appelez-nous	-
17	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.43
19	3407149		Control Board		Appelez-nous	-
20	3951768		Cap, Stud		Appelez-nous	-
21	297535		Bumper, Lint Lid		Appelez-nous	-
22	WP3390631		Screw   (Replaces: 339554)				$ 7.43
23	3352295		Guide, Drawer		Appelez-nous	-
24	3363338		Clip (2)		Appelez-nous	-
25	3949599		Lens, Display		Appelez-nous	-
26	3402835		Case, Meter		Appelez-nous	-
27	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 6.73
28	3407150		Board, Display		Appelez-nous	-
29	3347825		Plate & Nut Assembly		Appelez-nous	-
30	WP388326		Screw   (Replaces: 64211)				$ 8.36
31	3402816		Harness, Wiring		Appelez-nous	-
32	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 229.62
33	W11283272		Door, Service   (Replaces: 3351136)				$ 100.05
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3954812		Cushion, Console   (Replaces: 3348850)				$ 29.39
36	690853		Wire, Ground		Appelez-nous	-
37	340025		Wire, Ground		Appelez-nous	-
38	237446		Washer		Appelez-nous	-
39	339805		Screw, 10-32 X 3/16				$ 12.65
40	3397996		Wire, Ground		Appelez-nous	-
41	3402784		Switch, Service Diagnostic				$ 8.09
42	WP90406		Nut, Cage   (Replaces: 90406)				$ 8.18
45	717252		Connector, 2-way		Appelez-nous	-
46	3395683		Connector, Housing			Immediately	$ 49.01
50	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
32A	697779		Plug, 3-way		Appelez-nous	-
32B	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 6.57
32C	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 5.42

    View Diagram in Separate Window       Print Part List
