SELECT A DIAGRAM

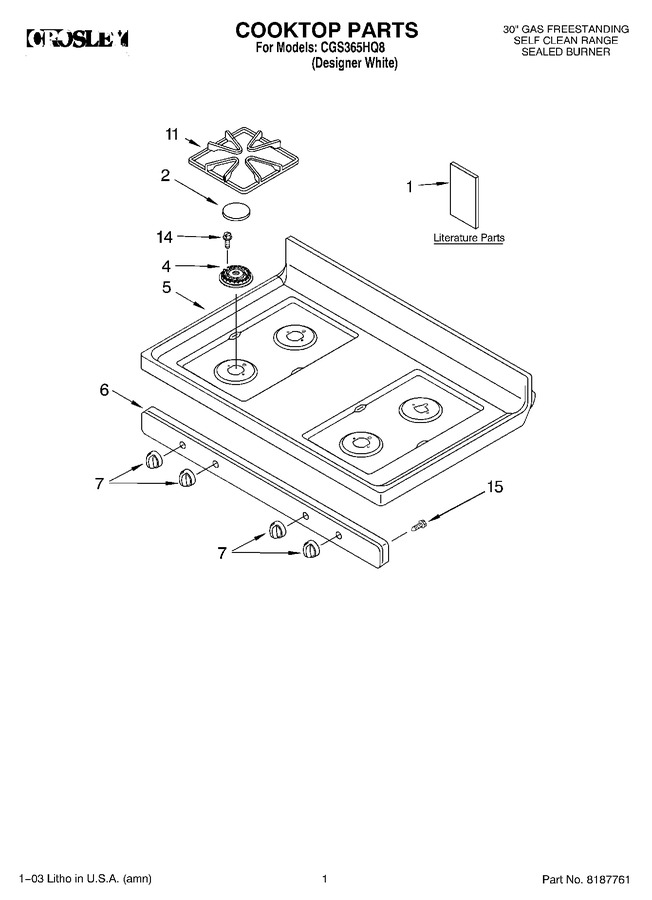

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8523048		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8273159		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT8523780		Literature Parts (instructions, Installation)		Appelez-nous	-
2	WP3191903		Cap, Burner (rf, Lr, Lf) (grey (rr))   (Replaces: 3191903)				$ 172.35
2	3191899		Cap, Burner (rf, Lr, Lf) (grey)				$ 31.21
4	4455979		Burner (rr)				$ 28.52
4	WP4455980		Burner (lf - Lr - Rf)   (Replaces: 4455980)				$ 58.69
5	8272251		Cooktop (white)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 261.52
7	8273116		Knob, Surface (4) (white)		Appelez-nous	-
11	8053391		Grate, Burner (4) (grey)				$ 242.28
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.70
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
