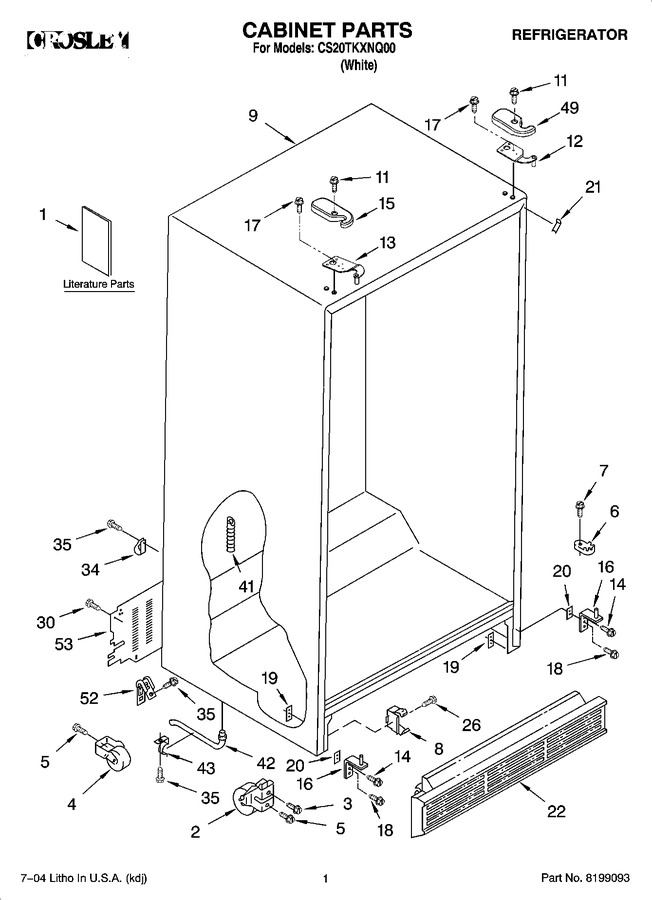

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2255136 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2308057 | Energy Guide |
|
- | |||||
| 1 | 2188765 | Use & Care Guide |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 12.98 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 37.96 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 6 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.31 | ||||
| 7 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.27 | |||||
| 8 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 9 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.86 | |||||
| 12 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 92.82 | |||||
| 13 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 90.27 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 15 | WP2203407W | Hinge Cover (fc) (white) (Replaces: 2203407W) |
|
$ 19.61 | |||||
| 16 | 8201707 | Hinge Bottom (2) (Replaces: 2217075) |
|
$ 87.71 | |||||
| 17 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 18 | W10856122 | Screw (Replaces: 3400103) |
|
$ 7.44 | |||||
| 19 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 13.45 | |||||
| 20 | 2209697 | Spacer, Hinge |
|
$ 41.25 | |||||
| 21 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 22 | W11167901 | Grille (white) (Replaces: 2198469W) |
|
$ 105.08 | |||||
| 26 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 30 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 34 | WP488366 | Clamp (Replaces: 489385) |
|
$ 10.73 | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 41 | W11566763 | Drain Ferrule (Replaces: 940139) |
|
Immediately | $ 48.11 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 29.61 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.15 | |||||
| 49 | WP2203408W | Hinge Cover (rc) (white) (Replaces: 2203408W) |
|
$ 19.82 | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 12.65 | |||||
| 53 | WP2188756 | Cover, Unit (Replaces: 2171936) |
|
$ 133.88 |
