Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2206823W Freezer Door (includes Item 8) Appelez-nous -
2 2186649W Handle, Center Special Order $ 70.49

3 2195917 Endcap (5) Appelez-nous -
4 WP489491 Screw   (Replaces: 489491) Special Order $ 6.57

6 WP2195916K Endcap (5)   (Replaces: 2195916) In-Stock Immediately $ 11.86

7 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 7.34

8 2159072 Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2221301) Special Order $ 291.24

9 2195919 Trim, Shelf (5) Appelez-nous -
10 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.43

12 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.48

13 WP489483 Screw   (Replaces: 489420) Special Order $ 10.27

14 WP2206629B Bracket, Door Stop   (Replaces: 2206629) Special Order $ 38.51

17 WP2193353W Handle, Trim   (Replaces: 2193353W) Special Order $ 7.67

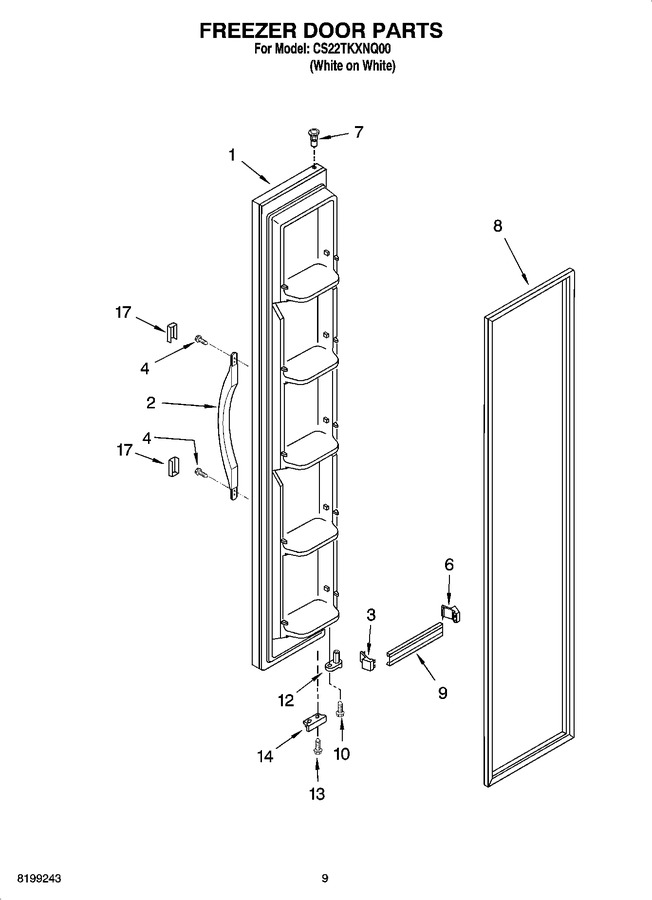

    View Diagram in Separate Window     Print Icon   Print Part List
