SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

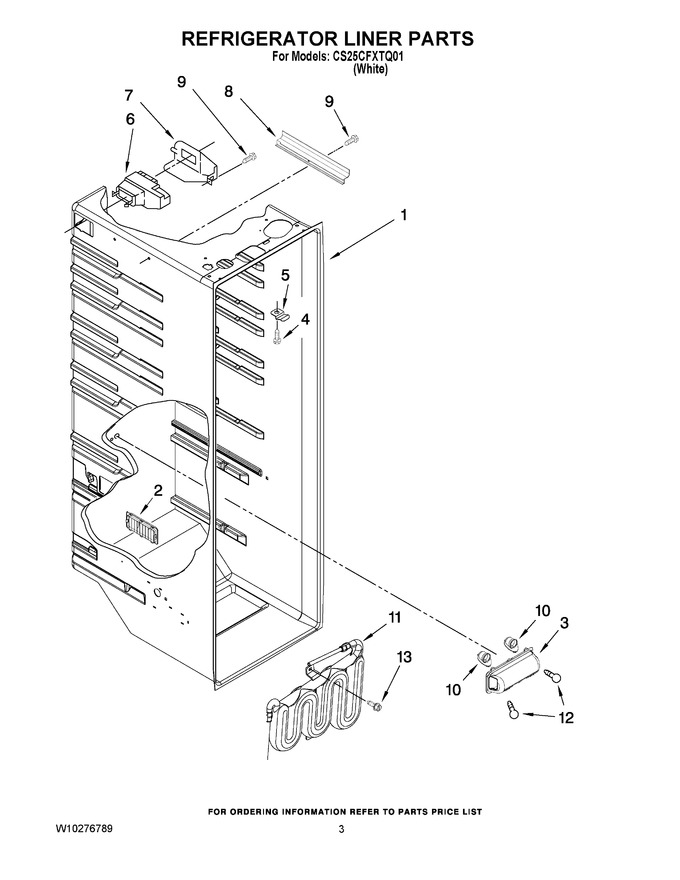

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2257741		Louver		Appelez-nous	-
3	W11239891		Light Lens   (Replaces: W10166019)				$ 91.37
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
5	2311612		Clip, Control Box (2)		Appelez-nous	-
6	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 94.29
7	2152019		Air Diffuser Cover				$ 81.30
8	W10252495		Cover, Conduit		Appelez-nous	-
9	W10759522		Screw   (Replaces: 486298)				$ 7.42
10	4387478		Socket   (Replaces: 2162085)			Immediately	$ 104.10
11	WPW10276792		Reservoir   (Replaces: W10204356)				$ 130.01
12	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
13	488280		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
