SELECT A DIAGRAM

02 - Lower Cabinet And Front Panel

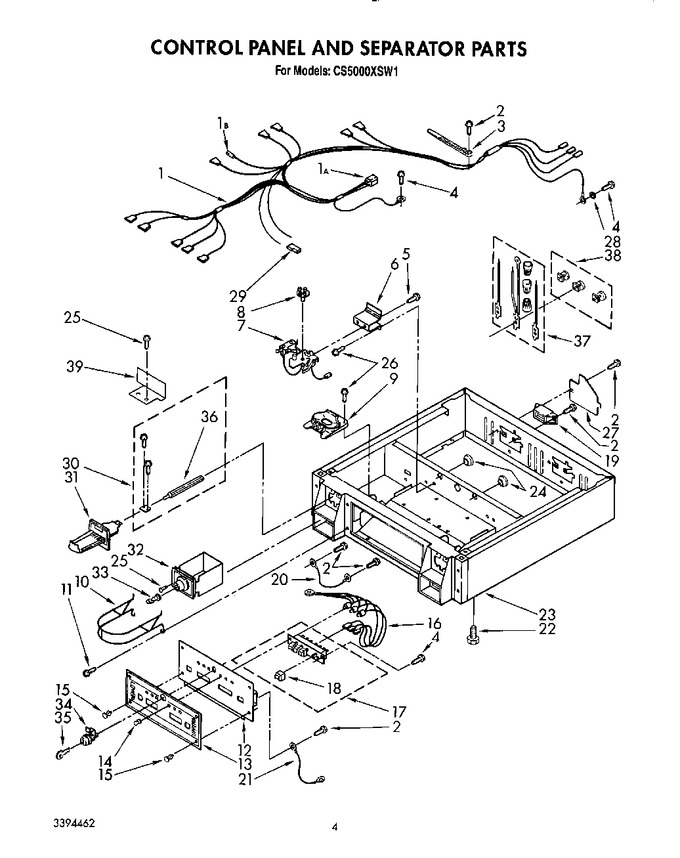

03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel


05 - Upper And Lower Bulkhead, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3393363		Harness, Wire (2) (uses Terminals Below)		Appelez-nous	-
2	WP308544		Screw, 10-24 X 1/2 (6)   (Replaces: 308544)			Immediately	$ 8.30
3	3389969		Tie, Cable		Appelez-nous	-
4	W10850756		Screw, 10-24 X 3/8 (4)   (Replaces: 697776)				$ 8.20
5	W11808444		Screw, 8-32 X 5/16 (4)   (Replaces: 98139)		Appelez-nous	-
6	3390115		Bracket, Timer (2)		Appelez-nous	-
7	279737		Timer (includes 4-pin Cam) (2)   (Replaces: 3388694)			Immediately	$ 382.97
8	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.79
8	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
9	3389224		Funnel, Coin (2)		Appelez-nous	-
10	3389232		Protector, Slide (2)		Appelez-nous	-
11	342043		Screw, 10-32 X 3/8 (4)		Appelez-nous	-
12	3389625		Panel, Control		Appelez-nous	-
13	3390036		Insert, Decorative		Appelez-nous	-
14	3389520		Lens, Light (6)		Appelez-nous	-
15	356388		Rivet (4)		Appelez-nous	-
16	3389968		Indicator, Light (2)		Appelez-nous	-
17	WPW10330137		Switch, Pushbutton (2)   (Replaces: 3394732)			Immediately	$ 340.60
18	3348587		Button, Pushbutton (8)				$ 12.40
19	279320		Block, Terminal (2) 10-24 X 1/2   (Replaces: 690261)			Immediately	$ 68.25
20	3393463		Strut		Appelez-nous	-
21	340025		Wire, Ground		Appelez-nous	-
22	122007		Bolt, 5-16 X 18 (2)		Appelez-nous	-
23	3389395		Collar (almond)		Appelez-nous	-
23	3389394		Collar (white)		Appelez-nous	-
24	3390057		Bushing, Snap (2)		Appelez-nous	-
25	WP356418		Screw, No.10-32 (4)   (Replaces: 96435)				$ 9.26
26	98437		Screw (8)		Appelez-nous	-
27	W11736322		Cover, Terminal Block (2)   (Replaces: 690893)		Appelez-nous	-
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
29	717252		Receptacle (uses Terminals Below)		Appelez-nous	-
29	94613		Terminal		Appelez-nous	-
37	279318		Terminal, Brass Tinned (3) (includes Illus. 31)			Immediately	$ 106.04
38	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 55.66
39	3390424		Extension, Slide			Immediately	$ 71.66
1A	693166		Terminal (3)		Appelez-nous	-
1A	WP94614		Terminal (2)   (Replaces: 94614)				$ 8.05
1A	692998		Receptacle (2)		Appelez-nous	-
1A	693167		Terminal (2)		Appelez-nous	-
1A	693164		Terminal (2)		Appelez-nous	-
1B	WP94614		Terminal   (Replaces: 339642)				$ 8.05
1B	351296		Receptacle (uses Terminals Below)		Appelez-nous	-
1B	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05

    View Diagram in Separate Window       Print Part List
