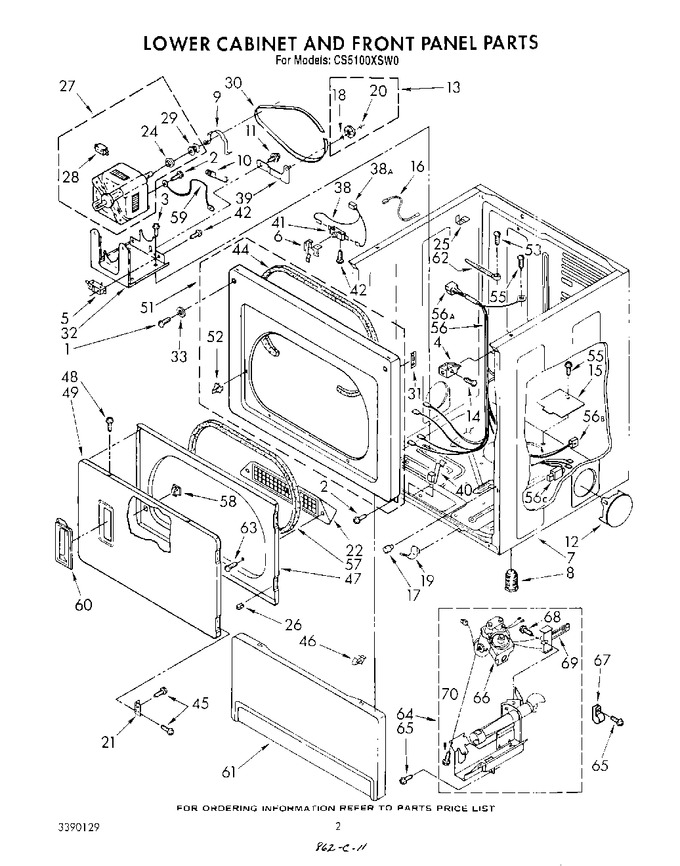

02 - Lower Cabinet And Front Panel


03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel


05 - Upper And Lower Bulkhead , Literatu


06 - 3387617 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw (2)   (Replaces: 98518)			Immediately	$ 7.87
2	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 8.47
4	3391846		Clip, Front Panel (2)				$ 22.21
5	WP3391902		Switch, Broken Belt   (Replaces: 3388907)			Immediately	$ 61.25
6	WP691581		Actuator, Switch   (Replaces: 691581)			Immediately	$ 8.49
7	3389373		Cabinet, Lower (golden Harvest)		Appelez-nous	-
7	3389369		Cabinet, Lower (white)		Appelez-nous	-
7	3389371		Cabinet, Lower (toast)		Appelez-nous	-
7	3389370		Cabinet, Lower (almond)		Appelez-nous	-
7	3389372		Cabinet, Lower (platinum)		Appelez-nous	-
8	49621		Foot, Dryer (plastic) (4)   (Replaces: 688222)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 85.28
12	WPW10404617		Plug, Multivent (platinum)   (Replaces: 697753)				$ 75.58
12	WPW10404617		Plug, Multivent (toast)   (Replaces: 697752)				$ 75.58
12	697764		Plug, Multivent (golden Harvest)		Appelez-nous	-
12	WPW10404617		Plug, Multivent (almond)   (Replaces: 697751)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	681615		Screw, 10-12 X 1   (Replaces: 3391915)				$ 14.57
15	WPW10354249		Plate, Cover   (Replaces: 3389808)				$ 9.41
16	3387377		Wire, Belt Switch		Appelez-nous	-
17	693152		Bumper				$ 11.51
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 8.36
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.95
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 9.68
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 85.48
22	3391611		Grill		Appelez-nous	-
24	WP3393657		Restrainer, Belt   (Replaces: 3390173)			Immediately	$ 139.08
25	3390514		Clip		Appelez-nous	-
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	279787		Motor Assembly 60 Hz. (nos. 24 & 29 Not Included With Motor)   (Replaces: 3388238)			Immediately	$ 246.82
28	279827		Switch, Motor   (Replaces: 3388235)			Immediately	$ 217.20
29	W10837625		Pulley 60 Hz   (Replaces: 3389729)			Immediately	$ 12.77
30	W11667280		Belt, Drive   (Replaces: 3389728)				$ 35.18
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.67
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11089212		Washer   (Replaces: 3392186)				$ 11.06
38	3389967		Harness, Door Switch		Appelez-nous	-
38	717253		Plug, 2-way (uses Terminal 94613)		Appelez-nous	-
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	WP3391902		Switch, Door (includes Illus. No. 6)   (Replaces: 3391901)			Immediately	$ 61.25
42	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 10-32 X 1/2   (Replaces: 342055)				$ 8.11
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	3391609		Door, Rear		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.55
49	W11663440		Door, Front (white)   (Replaces: 3387872)				$ 272.34
49	3387875		Door, Front (platinum)		Appelez-nous	-
49	3387874		Door, Front (toast)		Appelez-nous	-
49	3387876		Door, Front (golden Wheat)		Appelez-nous	-
49	3387873		Door, Front (almond)		Appelez-nous	-
51	3391860		Upper Front Panel (white)		Appelez-nous	-
51	3391864		Upper Front Panel (golden Wheat)		Appelez-nous	-
51	3391862		Upper Front Panel (toast)		Appelez-nous	-
51	3391861		Upper Front Panel (almond)		Appelez-nous	-
51	3391863		Upper Front Panel (platinum)		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
55	WP488729		Screw, No. 8 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
56	691707		Receptacle, 3-way (uses Terminal 94614)		Appelez-nous	-
56	717252		Receptacle (uses Terminals 94614 Or 94613)		Appelez-nous	-
56	3389966		Harness (lower)		Appelez-nous	-
56	3390423		Plug, Mult- Terminal (uses Terminals 94613)		Appelez-nous	-
57	W10823582		Seal, Door   (Replaces: 3387564)				$ 117.52
58	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
59	3387376		Wire, Ground (motor)		Appelez-nous	-
60	3389525		Handle, Door (platinum)		Appelez-nous	-
60	3389522		Handle, Door (white)				$ 81.80
60	3389526		Handle, Door (golden Wheat)		Appelez-nous	-
60	3389523		Handle, Door (almond)		Appelez-nous	-
60	3389524		Handle, Door (toast)		Appelez-nous	-
61	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
61	697216		Panel, Toe (almond)		Appelez-nous	-
61	697219		Panel, Toe (golden Wheat)		Appelez-nous	-
61	697217		Panel, Toe (toast)		Appelez-nous	-
61	697218		Panel, Toe (platinum)		Appelez-nous	-
62	3389969		Tie, Cable		Appelez-nous	-
63	697777		Screw, 11-16 X 7/8		Appelez-nous	-
64	3387617		Burner Assembly 60 Hz. (refer To Page 10 For Further Breakdown)		Appelez-nous	-
65	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
66	279923		Valve, Gas (complete) 60 Hz.   (Replaces: 694054)			Immediately	$ 286.03
67	3387561		Clamp, Pipe		Appelez-nous	-
68	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3387056)				$ 7.88
69	279311		Ignitor   (Replaces: 660991)			Immediately	$ 78.90
69	279311		Ignitor (alt.)   (Replaces: 686590)			Immediately	$ 78.90
