SELECT A DIAGRAM

02 - Lower Cabinet And Front Panel


03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel

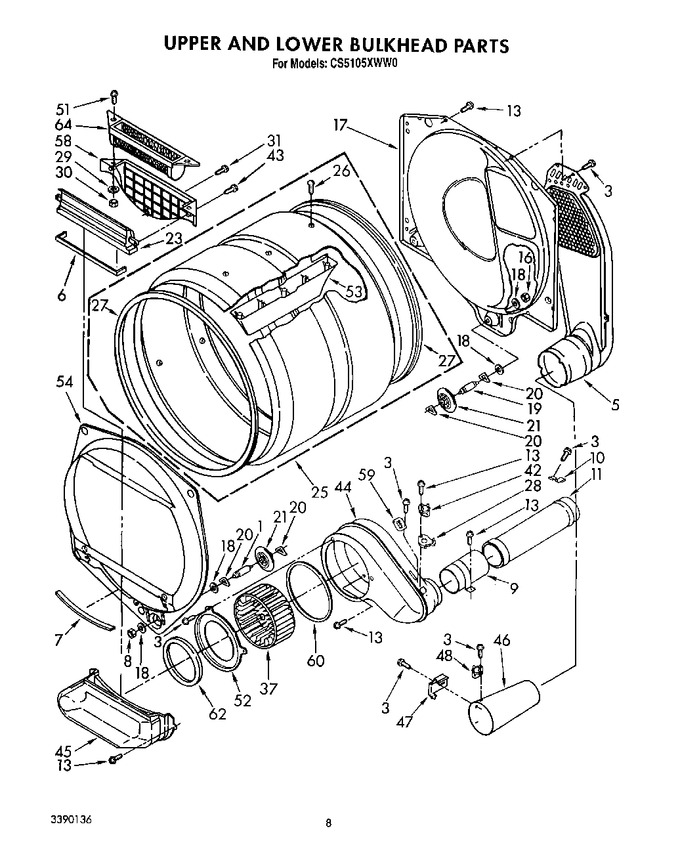

05 - Upper And Lower Bulkhead, Lit/optional


06 - 3387617 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 3387460)			Immediately	$ 55.99
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.23
5	3387259		Air Duct Assembly		Appelez-nous	-
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.53
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.53
8	120377		Nut, 3/8 X 16 (r.h.)		Appelez-nous	-
9	WP8563747		Exhaust Pipe Assembly   (Replaces: 3389848)				$ 86.36
10	3347000		Clip, Multivent		Appelez-nous	-
11	3388649		Extension, Exhaust Pipe		Appelez-nous	-
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
16	3387709		Nut, 3/8-16 (l.h.)				$ 5.60
17	W11299300		Bulkhead, Rear   (Replaces: 3389347)				$ 330.86
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 13.26
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 3387707)			Immediately	$ 52.63
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.71
21	WPW10314173		Support, Roller   (Replaces: 3388342)			Immediately	$ 25.65
23	697768		Housing, Outlet		Appelez-nous	-
25	W10545924		Drum Complete   (Replaces: 3393317)				$ 411.13
26	697777		Screw, 11-16 X 7/8		Appelez-nous	-
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 63.74
28	61894		Heater, Thermostat				$ 37.38
29	3391948		Washer, No. 10		Appelez-nous	-
30	120614		Nut, Hex		Appelez-nous	-
31	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.45
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 73.78
42	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 75.63
42	AT022		Thermostat 150~f (65.6~)   (Replaces: 660039)			Immediately	$ 27.28
43	WP3387230		Screw, 10-16 X 3/4   (Replaces: 3387230)			Immediately	$ 7.69
44	WP8544363		Housing, Blower   (Replaces: 697363)				$ 144.23
45	3390531		Lint Duct Assembly		Appelez-nous	-
46	697757		Funnel, Burner		Appelez-nous	-
47	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
48	WP3391912		Thermostat 255~ (124~c)   (Replaces: 3391912)			Immediately	$ 128.29
51	WP179051		Screw   (Replaces: 179051)			Immediately	$ 7.58
52	279780		Cover, Blower (includes Illus. Nos. 60 & 62)   (Replaces: 697771)				$ 87.84
53	3393316		Baffle, Drum (3)		Appelez-nous	-
54	WP697557		Bulkhead, Front   (Replaces: 3389421)				$ 196.59
58	3389516		Cover, Lint Screen		Appelez-nous	-
59	WP3390719		Thermal Fuse   (Replaces: 3389640)			Immediately	$ 28.41
60	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.44
62	WP8566209		Seal, Lint Duct   (Replaces: 697769)				$ 52.40
64	3389510		Screen, Lint		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	261890		Golden Wheat		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
	LIT3395314		Instructions, Installation		Appelez-nous	-
	LIT3390136		List, Service Parts		Appelez-nous	-
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Wheat (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
