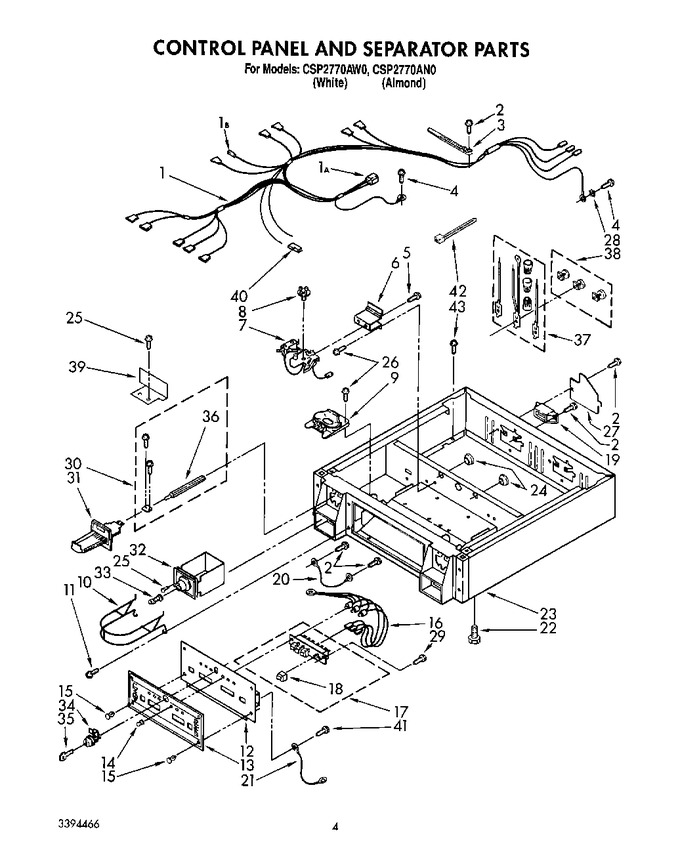

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3393363 | Harness, Wire (2) |
|
- | |||||
| 2 | WP308544 | Screw, 10-24 X 1/2 (6) (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 3 | 3389969 | Tie, Cable |
|
- | |||||
| 4 | W10850756 | Screw, 10-24 X 3/8 (4) (Replaces: 697776) |
|
$ 8.20 | |||||
| 5 | W11808444 | Screw, 8-32 X 5/16 (4) (Replaces: 98139) |
|
- | |||||
| 6 | 3390115 | Bracket, Timer (2) |
|
- | |||||
| 7 | 279737 | Timer (includes 4-pin Cam) (2) (Replaces: 3389668) |
|
Immediately | $ 382.97 | ||||
| 8 | WP3387974 | Cam (3 Pin (60 Min.)) (Replaces: 3387974) |
|
$ 8.74 | |||||
| 8 | WP339855 | Cam (4 Pin (45 Min.)) (Replaces: 339855) |
|
$ 8.79 | |||||
| 8 | 51-161-6 | Cam (6 Pin (30 Min.)) (Replaces: 343777) |
|
$ 34.52 | |||||
| 9 | 3389224 | Funnel, Coin (2) |
|
- | |||||
| 10 | 3389232 | Protector, Slide (2) |
|
- | |||||
| 11 | 342043 | Screw, 10-32 X 3/8 (4) |
|
- | |||||
| 12 | 3389625 | Panel, Control |
|
- | |||||
| 13 | 3390036 | Insert, Decorative |
|
- | |||||
| 14 | 3389520 | Lens, Light (6) |
|
- | |||||
| 15 | 356388 | Rivet (4) |
|
- | |||||
| 16 | 3389968 | Indicator, Light (2) |
|
- | |||||
| 17 | WPW10330137 | Switch, Pushbutton (2) (Replaces: 3394075) |
|
Immediately | $ 340.60 | ||||
| 18 | 3348587 | Button, Pushbutton (8) |
|
$ 12.40 | |||||
| 19 | 279320 | Block, Terminal (2) 10-24 X 1/2 (Replaces: 690261) |
|
Immediately | $ 68.25 | ||||
| 20 | 3393463 | Strut |
|
- | |||||
| 21 | 340025 | Wire, Ground |
|
- | |||||
| 22 | 122007 | Bolt, 5-16 X 18 (2) |
|
- | |||||
| 23 | 3389395 | Collar (almond) |
|
- | |||||
| 23 | 3389394 | Collar (white) |
|
- | |||||
| 24 | 3390057 | Bushing, Snap (2) |
|
- | |||||
| 25 | WP356418 | Screw, No.10-32 (4) (Replaces: 96435) |
|
$ 9.26 | |||||
| 26 | 98437 | Screw (8) |
|
- | |||||
| 27 | W11736322 | Cover, Terminal Block (2) (Replaces: 690893) |
|
- | |||||
| 28 | 3390443 | Retainer, Terminal (2) |
|
- | |||||
| 29 | WP489128 | Screw, 8-32 (Replaces: 303921) |
|
$ 11.40 | |||||
| 37 | 279318 | Terminal, Brass Tinned (3) (includes Illus. 31) |
|
Immediately | $ 106.04 | ||||
| 38 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 39 | 3390424 | Extension, Slide |
|
Immediately | $ 71.66 | ||||
| 40 | 717252 | Receptacle (uses Terminals 94614 Or 94613) |
|
- | |||||
| 41 | 303776 | Screw, 8-32 X 5/16 (Replaces: 3392891) |
|
- | |||||
| 42 | 3391249 | Tie, Cable |
|
- | |||||
| 43 | WP489069 | Screw, 8-18 X 1/2 (Replaces: 3393439) |
|
Immediately | $ 8.40 | ||||
| 1A | 692998 | Receptacle (2) (uses Terminals (2) 693167, (2) 693164, (3) 693166 And (2) 94614) |
|
- | |||||
| 1B | 351296 | Receptacle (uses Terminals 94614 Or 339642) |
|
- |
