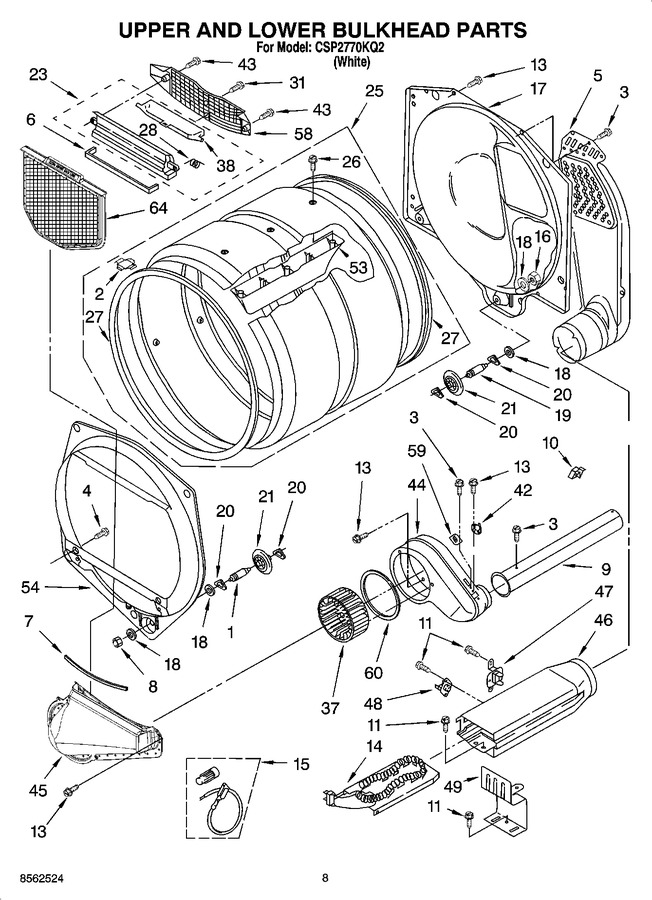

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 3399508) |
|
Immediately | $ 55.99 | ||||
| 2 | 8066086 | Drum, Hole Plug |
|
$ 10.16 | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.23 | |||||
| 4 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | WP3359452 | Nut, 3/8 X 16 (r.h.) (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 9 | 279936 | Exhaust Pipe (Replaces: 8318486) |
|
$ 138.76 | |||||
| 10 | WP3388229 | Clip, Exhaust (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 14 | W10864898 | Heater Element (Replaces: 3387748) |
|
$ 302.04 | |||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | 3387709 | Nut, 3/8-16 (l.h.) |
|
$ 5.60 | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 330.86 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3399509) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
$ 51.20 | |||||
| 25 | W10545923 | Drum Complete (Replaces: 8318215) |
|
$ 412.74 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 28 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 31 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 73.78 | ||||
| 38 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 192.52 | ||||
| 42 | WP3387138 | Thermostat, Internal-bias (Replaces: 3387138) |
|
Immediately | $ 139.12 | ||||
| 43 | WP3387230 | Screw, 10-16 X 13/16 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 96.11 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 195.73 | |||||
| 46 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 180.98 | ||||
| 47 | 279973 | Thermal Cut-off (includes Illus. 48) (Replaces: 8318314) |
|
Immediately | $ 68.04 | ||||
| 48 | WP3391914 | Thermostat 295~ (146~c) (Replaces: 3391914) |
|
Immediately | $ 107.52 | ||||
| 49 | 8066099 | Bracket, Heater Box |
|
$ 24.13 | |||||
| 53 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 86.01 | ||||
| 54 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 196.59 | |||||
| 58 | W11086603 | Grille, Outlet Screen (Replaces: 8299979) |
|
Immediately | $ 33.21 | ||||
| 59 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 64 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 64 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 64 | W10120998 | Screen, Lint (Replaces: 8066170) |
|
$ 74.66 | |||||
| 64 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
Immediately | $ 11.11 | ||||
| 64 | 285875 | Kit, Security |
|
- | |||||
| 64 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 64 | N/A | Accessory Parts |
|
- | |||||
| 64 | 4392067 | Kit, Dryer Repair |
|
Immediately | $ 56.03 |
