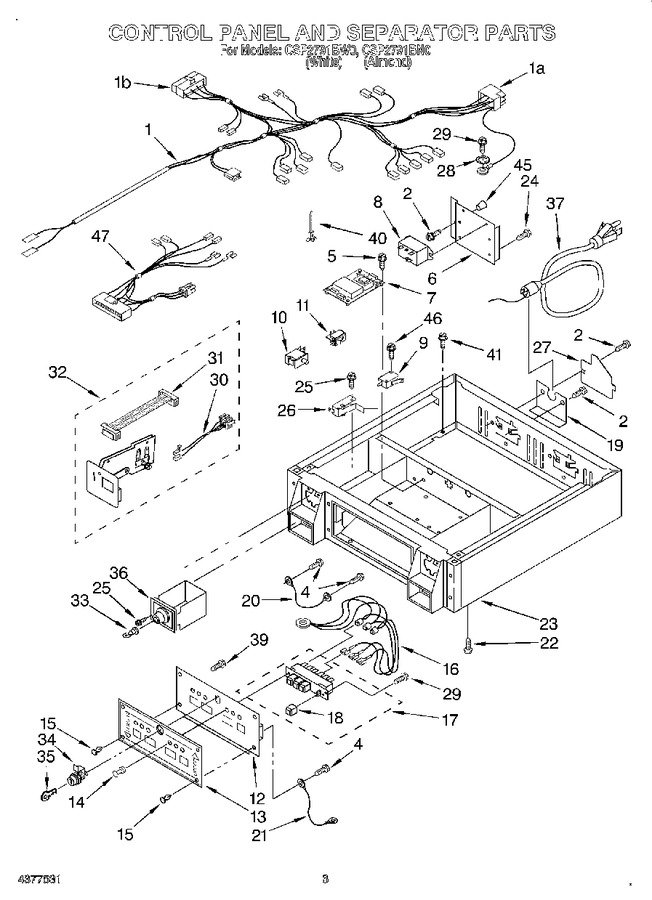

01 - Lower Cabinet And Front Panel


02 - Control Panel And Separator


03 - Upper Cabinet And Front Panel


04 - Upper And Lower Bulkhead


05 - 3401797 Burner


06 - Optional, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3402412		Harness, Wire (2)		Appelez-nous	-
2	W11676450		Screw, 10-24 X 1/2 (6)   (Replaces: 3400000)				$ 13.28
4	303776		Screw, 10-24 X 3/8 (4)   (Replaces: 3392891)		Appelez-nous	-
5	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.09
6	3361361		Bracket, Relay		Appelez-nous	-
7	3396010		Timer, Electronic		Appelez-nous	-
8	WP8566493		Power, Relay   (Replaces: 697812)				$ 85.38
9	3402410		Switch-service Door		Appelez-nous	-
10	3402409		Switch-coin Simulator		Appelez-nous	-
11	3402408		Switch, Power Interrupt		Appelez-nous	-
12	3389625		Panel, Control		Appelez-nous	-
13	3402401		Insert, Decorative		Appelez-nous	-
14	3389520		Lens, Light (6)		Appelez-nous	-
15	356388		Rivet (4)		Appelez-nous	-
16	3401177		Indicator, Light (2)		Appelez-nous	-
17	3401851		Switch, Pushbutton (2)				$ 122.99
18	3348587		Button, Pushbutton (8)				$ 12.40
19	3390189		Relief, Strain (2) 10-24 X 1/2		Appelez-nous	-
20	3393463		Strut		Appelez-nous	-
21	340025		Wire, Ground		Appelez-nous	-
22	3400500		Bolt, 5-16 X 18 (2)   (Replaces: 172455)			Immediately	$ 12.64
23	3402386		Collar (almond)		Appelez-nous	-
23	3402385		Collar (white)		Appelez-nous	-
24	WP313808		Screw 6-32 X 1/2   (Replaces: 311932)				$ 7.47
25	WP3395530		Screw, 6-20x7/8 (4)   (Replaces: 697773)				$ 7.71
26	3402411		Switch, Money Vault		Appelez-nous	-
27	W11539855		Cover, Terminal Block (2)   (Replaces: 3396795)			Immediately	$ 566.78
28	3390443		Retainer, Terminal (2)		Appelez-nous	-
29	W10850756		Screw, 10-32 X 1/2   (Replaces: 697776)				$ 7.38
37	W11222083		Power Cord   (Replaces: 3401402)				$ 113.96
38	717252		Receptacle (usesterminals 94614 And 94613)		Appelez-nous	-
39	WP489128		Screw, 8-32   (Replaces: 303921)				$ 10.26
40	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 30.09
41	WP489069		Screw, 8-18 X 1/2   (Replaces: 3393439)			Immediately	$ 7.56
45	W10491983		Cap   (Replaces: 359702)		Appelez-nous	-
46	312717		Screw, 4.40 X 3/4		Appelez-nous	-
47	3402423		Harness Accountability (2)		Appelez-nous	-
1A	385826		Receptacle (2) (uses Terminals 94614)		Appelez-nous	-
1B	3936113		Receptacle		Appelez-nous	-
