SELECT A DIAGRAM
New Model Search:

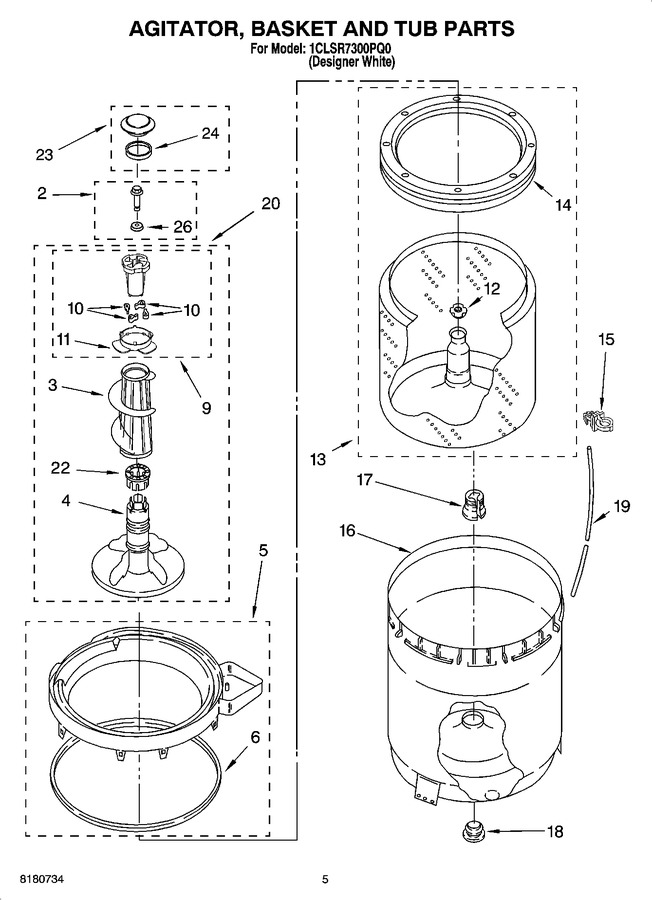

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP3360824 | Auger-agitator (Replaces: 389141) |
|
$ 200.31 | |||||
| 4 | WP389386 | Agitator (Replaces: 389386) |
|
$ 182.20 | |||||
| 5 | W10880720 | Tub Ring & Gasket (Replaces: 8528150) |
|
Immediately | $ 210.01 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 26.69 | ||||
| 9 | 285748 | Cam-driven (Replaces: 3363662) |
|
Immediately | $ 39.84 | ||||
| 10 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 11 | WP3363661 | Bearing-cam Driven (Replaces: 3363661) |
|
$ 7.41 | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 13 | W10389329 | Basket & Balance Ring (Replaces: 8526017) |
|
Immediately | $ 333.96 | ||||
| 14 | WP387240 | Balance Ring (Replaces: 8519788) |
|
Immediately | $ 172.04 | ||||
| 15 | 2219077 | Clip, Pressure Switch Hose |
|
$ 57.82 | |||||
| 16 | 63849 | Tub |
|
$ 275.66 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.98 | ||||
| 19 | WP353244 | Hose, Pressure (Replaces: 3347780) |
|
Immediately | $ 78.00 | ||||
| 20 | 285727 | Agitator (complete) (Replaces: 3347674) |
|
Immediately | $ 310.91 | ||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 23 | WP3362061 | Cap, Agitator (Replaces: 63973) |
|
Immediately | $ 61.79 | ||||
| 24 | WP358912 | Seal, Agitator Cap (Replaces: 358912) |
|
$ 7.44 | |||||
| 26 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 |
