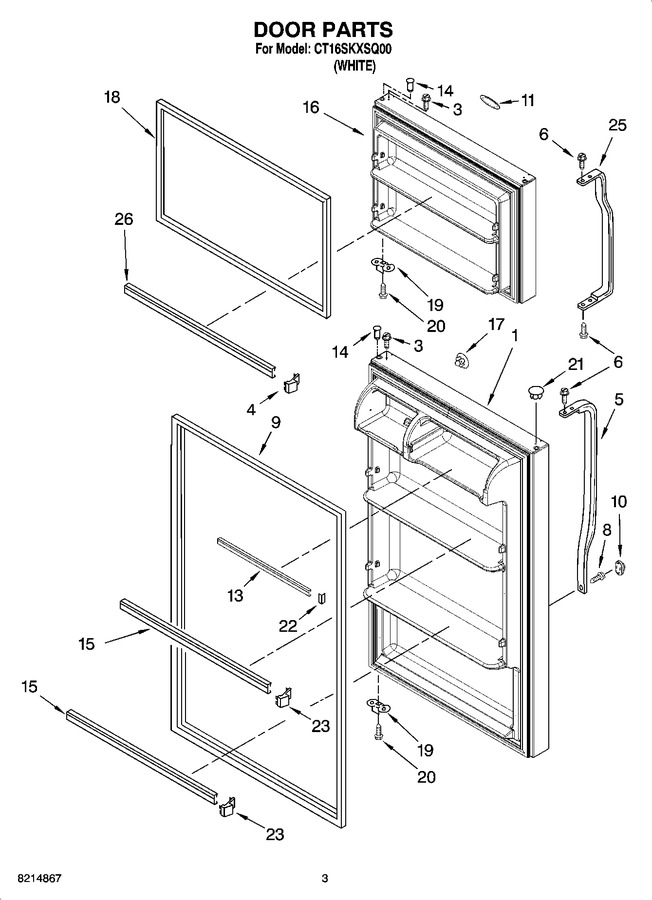

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2316145W		Refrigerator Door Includes 9 & 14 (white)   (Replaces: 2316145W)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP2156003		Trim, Endcap   (Replaces: 2156003)			Immediately	$ 13.25
5	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 130.11
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	WP2319266T		Door Gasket, Magnetic   (Replaces: 2264507)				$ 171.60
10	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 8.14
11	2301599W		Nameplate		Appelez-nous	-
13	W11129820		Trim, Door Shelf   (Replaces: 2264785)			Immediately	$ 127.34
14	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
15	WP2266738		Trim, Door   (Replaces: 2263259)				$ 111.69
16	2263254W		Freezer Door (white Includes 14 & 18)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
18	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 215.86
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
21	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
23	WP2195916K		Trim, End Cap   (Replaces: 2195916)			Immediately	$ 13.18
25	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 156.82
26	WP2266727		Trim, Endcap   (Replaces: 2263260)			Immediately	$ 120.57
