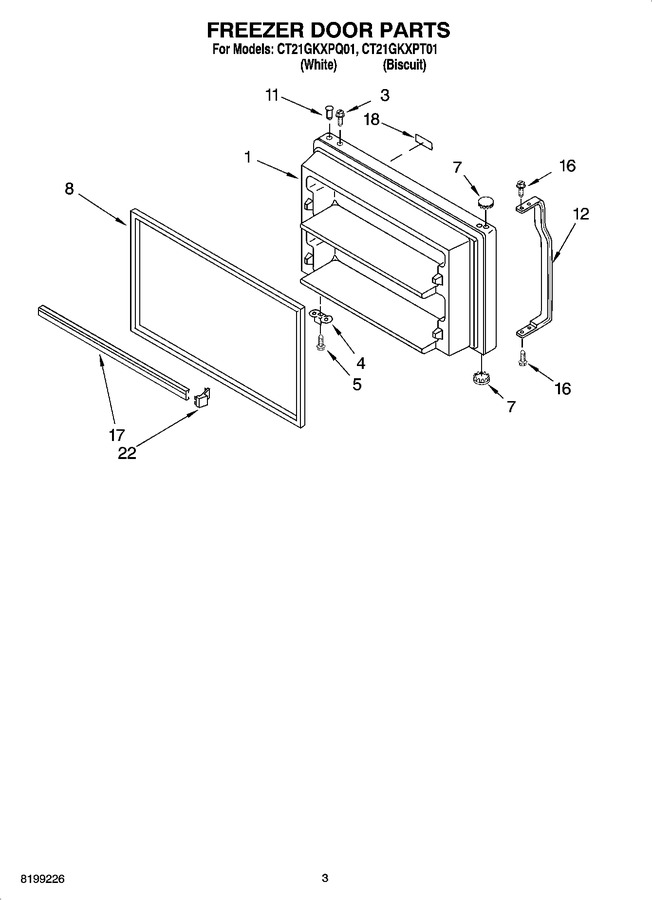

02 - Freezer Door Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Liner Parts
06 - Unit Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023688 | Freezer Door (includes 8 & 11) (biscuit) (Replaces: 2204686) |
|
- | |||||
| 1 | W11023679 | Freezer Door (includes 8 & 11) (white) (Replaces: 2182489) |
|
$ 682.52 | |||||
| 3 | WP8281206 | Screw 8-18 X 1/2 (Replaces: 8281206) |
|
$ 7.53 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.19 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (service) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 12 | WP2202806W | Handle, Center (white) (Replaces: 2202806W) |
|
$ 139.86 | |||||
| 12 | 2202806T | Handle, Center (biscuit) |
|
$ 63.61 | |||||
| 16 | WP489357 | Screw 8-18 X 5/8 (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 17 | WP2201060 | Trim, Door Shelf (2) (Replaces: 2201060) |
|
$ 108.19 | |||||
| 18 | 2301599W | Nameplate (white) |
|
- | |||||
| 18 | 2301599T | Nameplate (biscuit) |
|
- | |||||
| 22 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 11.93 |
