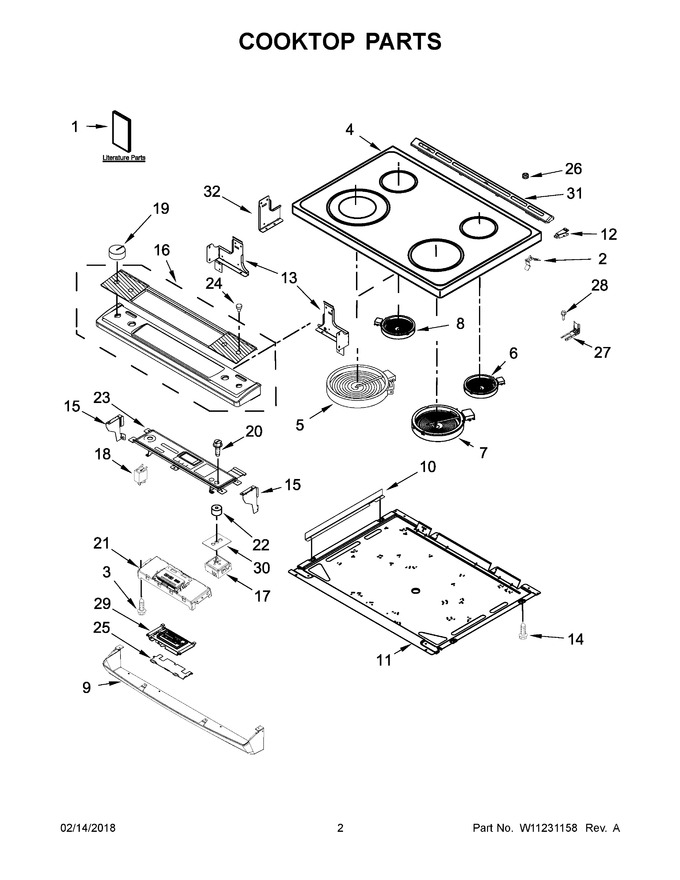

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11047691 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10751483 | Cooktop (black) (Replaces: W10611852) |
|
$ 517.83 | |||||
| 5 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 312.78 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | W11047722 | Element (2500w) (right Front) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 8 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 201.13 | |||||
| 9 | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 146.04 | ||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 70.12 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 163.45 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 16 | W10660994 | Console (stainless) |
|
$ 349.98 | |||||
| 17 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 19 | W11116868 | Knob (stainless) (Replaces: W10596748) |
|
Immediately | $ 68.04 | ||||
| 20 | W10674068 | Screw |
|
$ 21.95 | |||||
| 21 | W11355246 | Control, Electronic (maxwell) (Replaces: W10759295) |
|
$ 369.56 | |||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 26.84 | |||||
| 23 | W10612579 | Active Overlay Assembly |
|
$ 340.34 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 26 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 28 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 29 | W11105615 | Assembly, Display (Replaces: W10759325) |
|
Immediately | $ 474.88 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 31 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 32 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 17A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 17B | W11162115 | Switch, Infinite (right Front) (Replaces: W10600015) |
|
Immediately | $ 99.09 | ||||
| 17C | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 1A | W10844282 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | W10844276 | Wiring Diagram (english/french) |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11188427 | Harness, Main |
|
- | |||||
| NI | W11188429 | Harness, Cooktop |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 213.24 | ||||
| NI | W11207144 | Harness, Console |
|
- |
