View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

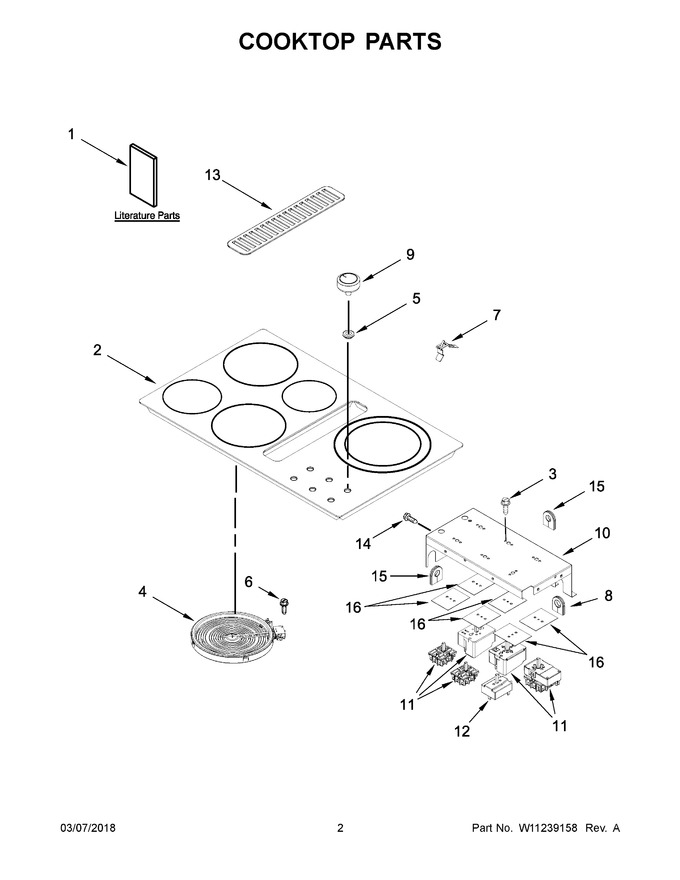

02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10848428 | Instructions, Installation |
|
- | |||||
| 2 | W11051486 | Top (black) (Replaces: W10795401) |
|
$ 925.20 | |||||
| 3 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 4 | WPW10342780 | Element (1300w) (left Front) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 5 | W10853046 | Bezel, Knob (stainless) (Replaces: W10593536) |
|
Immediately | $ 67.08 | ||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 7 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 8 | W10324729 | Grommet, Wire (gray) (large Hole) |
|
$ 8.13 | |||||
| 9 | W11084158 | Knob, Control (stainless) (Replaces: W10884728) |
|
Immediately | $ 22.68 | ||||
| 10 | W10834481 | Bracket, Switch |
|
- | |||||
| 11 | W10917724 | Switch, Infinite (left Front & Center Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 12 | W11690658 | Switch, Blower (Replaces: W10866567) |
|
Immediately | $ 60.60 | ||||
| 13 | WPW10205094 | Grille, Air (black) (Replaces: W10205094) |
|
$ 229.90 | |||||
| 14 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 15 | 8008P068-60 | Grommet, Wire (black) (small Hole) |
|
$ 15.11 | |||||
| 16 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 11A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| 11B | W10911303 | Switch, Infinite (center Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 11C | W10857622 | Switch, Infinite (right Rear) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 1A | W10848424 | Instructions, User |
|
- | |||||
| 1B | W10917816 | Sheet, Tech |
|
- | |||||
| 1C | W11026766 | Diagram, Wiring |
|
- | |||||
| 2A | W11051487 | Top (stainless Model Includes Trim) (Replaces: W10795402) |
|
$ 710.42 | |||||
| 4A | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 4B | WPW10251108 | Element (3200w) (center Front) (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 4C | W11171119 | Element (1200w) (center Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 4D | W10823727 | Element (3000w) (right Rear) (Replaces: W10711900) |
|
Immediately | $ 308.37 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 | |||||
| NI | W11465762 | Harness, Jumper (Replaces: W11190480) |
|
$ 30.04 | |||||
| NI | WP71001171 | Screw (Replaces: 7101P460-60) |
|
$ 6.57 | |||||
| NI | W11190478 | Harness, Blower |
|
$ 106.47 | |||||
| NI | W11134610 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 | ||||
| NI | W10909126 | Kit, Plenum Screw |
|
Immediately | $ 19.93 |
