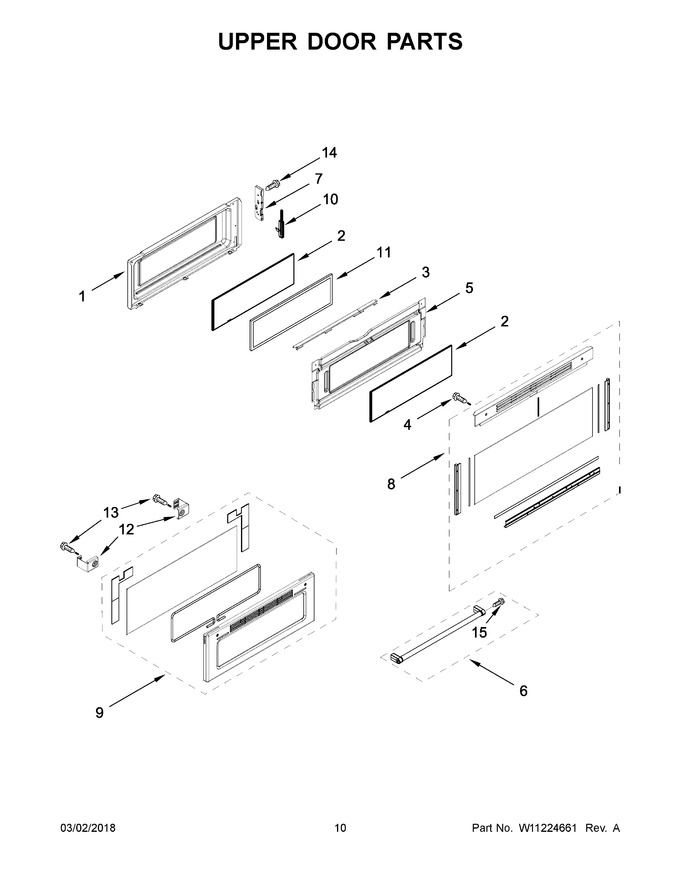

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11103615		Lining, Door   (Replaces: W11051041)				$ 275.05
2	W11132120		Glass, Inner   (Replaces: W11099272)				$ 161.40
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 154.74
4	W11690596		Screw With Washer   (Replaces: W10284411)				$ 20.98
5	W10485723		Retainer, Insulation				$ 227.18
6	W10674700		Assembly, Handle (black)		Appelez-nous	-
7	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
8	W10789064		Assembly, Door (black)   (Replaces: W10654438)				$ 388.18
9	W11132193		Assembly, Door (stainless)   (Replaces: W10645192)			Immediately	$ 509.81
10	WPW10485733		Hinge, Door (left)   (Replaces: W10485733)			Immediately	$ 57.88
11	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 89.26
12	W10645182		Bracket, Door Handle (stainless Models Only)				$ 37.56
13	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
14	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
15	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.06
10A	WPW10485732		Hinge, Door (right)   (Replaces: W10485732)			Immediately	$ 50.18
6A	W10674699		Assembly, Handle (white)		Appelez-nous	-
6B	W11305108		Assembly, Handle (stainless)   (Replaces: W10674701)				$ 169.56
8A	W10789063		Assembly, Door (white)   (Replaces: W10654437)		Appelez-nous	-
