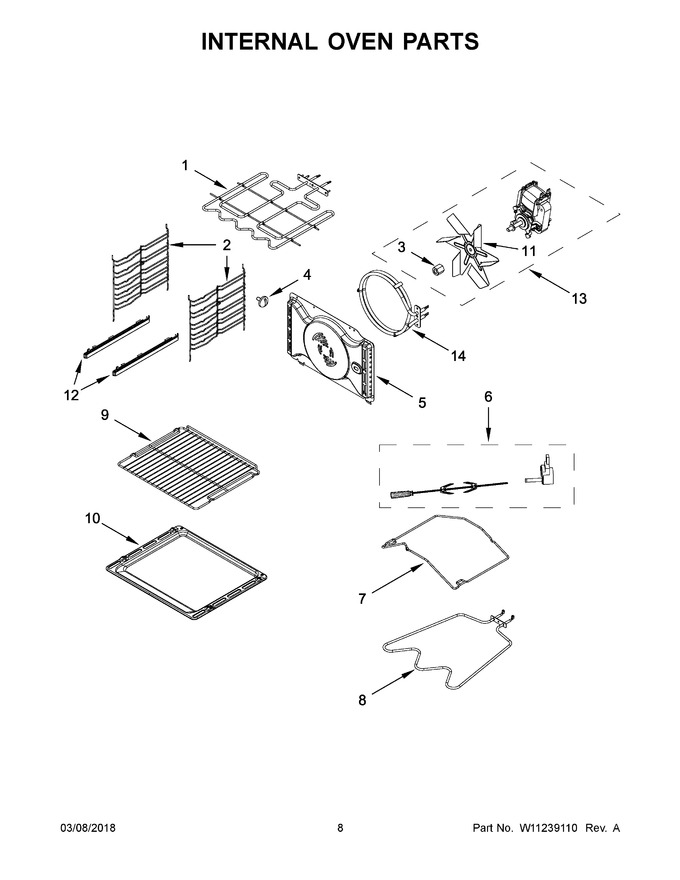

05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532965 | Element, Upper Grill |
|
$ 183.12 | |||||
| 2 | W11236920 | Grid, Oven Rack (Replaces: W10762741) |
|
$ 79.71 | |||||
| 3 | W11237447 | Nut (Replaces: W10781713) |
|
$ 13.25 | |||||
| 4 | W10519022 | Screw, Grid |
|
$ 12.55 | |||||
| 5 | W11236917 | Baffle, Convection Fan (Replaces: W10696902) |
|
$ 204.17 | |||||
| 6 | W10519017 | Kit, Motor And Spit Rotisserie |
|
- | |||||
| 7 | W10519018 | Rack, Rotisserie Spit Support |
|
$ 99.85 | |||||
| 8 | W11237289 | Element, Lower (Replaces: W10551720) |
|
Immediately | $ 155.35 | ||||
| 9 | W11236918 | Rack, Oven (Replaces: W10635612) |
|
$ 39.56 | |||||
| 10 | W11236919 | Tray, Baking (Replaces: W10674818) |
|
- | |||||
| 11 | W11237278 | Blade, Fan (Replaces: W10781712) |
|
- | |||||
| 12 | W11237237 | Rail, Sliding (Replaces: W10640995) |
|
$ 213.93 | |||||
| 13 | W11237275 | Motor, Fan Convection (Replaces: W10781691) |
|
$ 318.70 | |||||
| 14 | W11237287 | Element, Convection (Replaces: W10368831) |
|
- |
