View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts

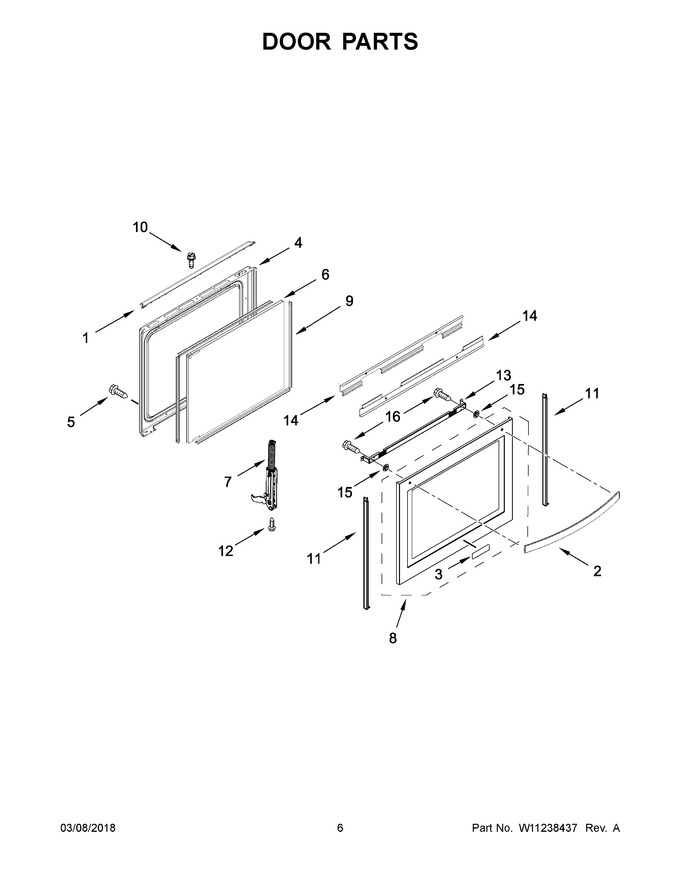

04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11182113 | Trim, Vent (black) (Replaces: W10887939) |
|
$ 122.13 | |||||
| 2 | W11107877 | Assembly, Door Handle (stainless) (Replaces: W10918786) |
|
Immediately | $ 238.28 | ||||
| 3 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11088591) |
|
$ 154.05 | |||||
| 7 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 8 | W11106273 | Assembly, Outer Door (stainless) (Replaces: W10864214) |
|
$ 465.96 | |||||
| 9 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 27.94 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 11 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 14 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 15 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 16 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 |
