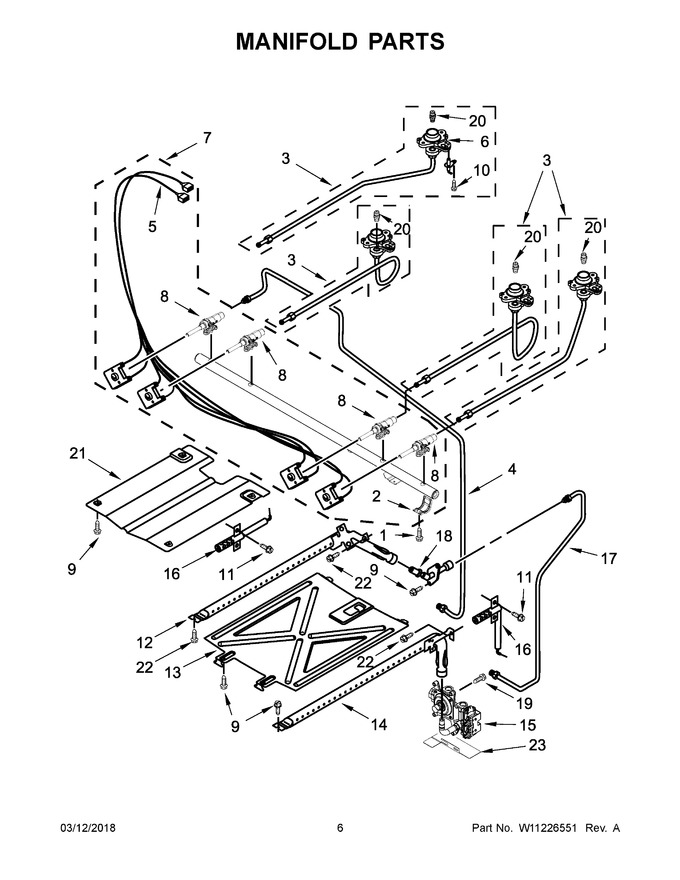

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 3 | W11157537 | Assembly, Orifice Holder (left Front) |
|
$ 106.57 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 143.42 | |||||
| 5 | W11256561 | Harness, Switch (Replaces: W10812380) |
|
$ 171.27 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 33.05 | ||||
| 7 | W10812382 | Assembly, Manifold |
|
$ 336.45 | |||||
| 8 | WPW10279614 | Valve, Gas (left Rear) (Replaces: W10279614) |
|
$ 251.83 | |||||
| 9 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 11 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 215.42 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 228.17 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 203.46 | |||||
| 15 | WPW10602001 | Regulator (Replaces: W10602001) |
|
Immediately | $ 306.87 | ||||
| 16 | WPW10333842 | Ignitor (electrode, Broil) (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 175.09 | |||||
| 18 | W10592836 | Fitting, Broiler |
|
$ 97.43 | |||||
| 19 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 20 | WPW10170509 | Orifice, Natural (14.2k) (Replaces: W10170509) |
|
$ 93.24 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 22 | 3196265 | Screw |
|
- | |||||
| 23 | W10224921 | Bracket, Aegis |
|
- | |||||
| 16A | WP9758079 | Ignitor (electrode, Bake) (Replaces: 9758079) |
|
Immediately | $ 43.26 | ||||
| 20A | WPW10170508 | Orifice, Natural (9.5k) (left Rear) (Replaces: W10170508) |
|
$ 85.69 | |||||
| 20B | WPW10170506 | Orifice, Natural (5k) (right Rear) (Replaces: W10170506) |
|
$ 88.07 | |||||
| 3A | W10473929 | Assembly, Orifice Holder (left Rear) |
|
$ 75.06 | |||||
| 3B | W11157536 | Assembly, Orifice Holder (right Front) |
|
$ 102.97 | |||||
| 3C | W10474163 | Assembly, Orifice Holder (right Rear) |
|
$ 74.58 | |||||
| 8A | WPW10247744 | Valve, Gas (right Rear) (Replaces: W10247744) |
|
$ 252.11 | |||||
| 8B | WPW10279615 | Valve, Gas (left Front And Right Front) (Replaces: W10279615) |
|
$ 233.02 | |||||
| NI | WPW10170534 | Kit, Lp Conversion (Replaces: W10170534) |
|
$ 99.80 | |||||
| NI | W11126051 | Kit, Lp Bake And Broil (Replaces: W10566537) |
|
$ 116.14 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
