Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107817S Door, Left (stainless) Appelez-nous -
2 WP3400203 Screw, Set   (Replaces: W10287054) In-Stock Immediately $ 4.54

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 WPW10119841 Bin, Medium   (Replaces: W10119841) In-Stock Immediately $ 81.21

6 W11311945 Screw   (Replaces: 12990204) Special Order $ 13.25

7 W10290759 Screw, Handle Special Order $ 5.83

8 W10830055 Gasket, Door (apollo Grey)   (Replaces: W10163991) In-Stock Immediately $ 255.29

9 WPW10314517K Handle, Door (stainless)   (Replaces: W10314517) Special Order $ 219.03

10 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 11.30

11 12962106 Waterline, Door Special Order $ 119.78

12 WPW10119846 Bin, Gallon   (Replaces: W10119846) In-Stock Immediately $ 79.53

13 WPW10287601 Seal, Ice Chute   (Replaces: W10287601) In-Stock Immediately $ 29.48

14 WP12722813AP Mullion, Door (apollo Grey)   (Replaces: 12732503AP) Special Order $ 306.80

15 W10187453 Bucket, Dispenser (upper)   (Replaces: 12977401) Special Order $ 65.77

16 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 55.31

17 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 13.91

18 12977501 Bucket, Dispenser (lower) Appelez-nous -
19 12996601 Clip, Bushing Wire (left Door) Special Order $ 10.05

21 WP98165 Screw   (Replaces: 67006473) Special Order $ 7.71

22 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 52.48

23 13107814S Door, Right (stainless) Appelez-nous -
24 W11510593 Gripper-medium   (Replaces: W10184031) In-Stock Immediately $ 15.69

25 W11510594 Gripper-gallon   (Replaces: W10184032) Special Order $ 18.01


    View Diagram in Separate Window     Print Icon   Print Part List

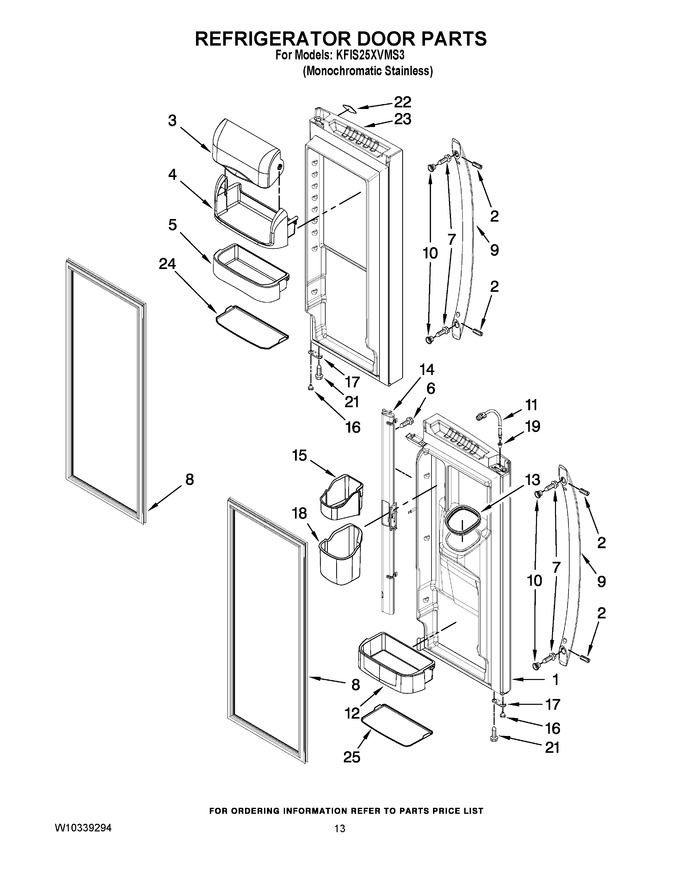

Diagram for KFIS25XVMS3
