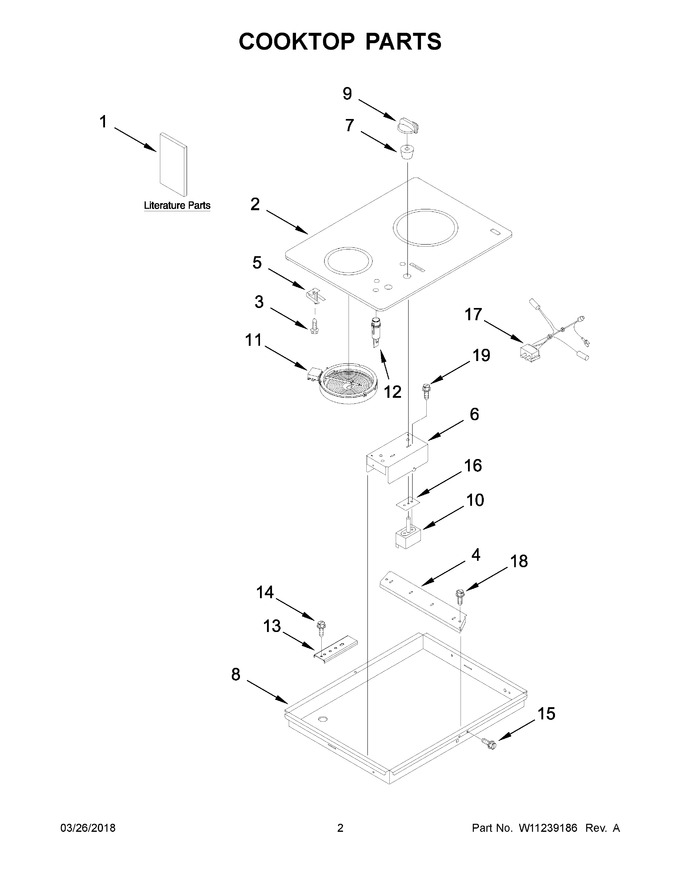

02 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10841974		Instructions, Installation		Appelez-nous	-
2	W10863021		Cooktop   (Replaces: W10840107)		Appelez-nous	-
3	WP486754		Screw   (Replaces: 246119)				$ 7.21
4	3192721		Rail, Element Support		Appelez-nous	-
5	9759094		Spring, Locator				$ 6.65
6	W10414006		Bracket, Mounting				$ 72.99
7	8285469		Grommet (black)				$ 47.25
8	8286988		Box, Burner		Appelez-nous	-
9	W10720680		Knob, Control		Appelez-nous	-
10	WP3191049		Switch, Infinite (front)   (Replaces: 3191049)				$ 157.76
11	W11171119		Element (1200w) (front)   (Replaces: 8273994)			Immediately	$ 203.06
12	3193012		Light, Indicator				$ 104.13
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 83.57
14	WP3400093		Screw   (Replaces: 3400093)				$ 6.80
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
16	3183956		Seal, Switch Cover				$ 43.89
17	3192612		Lamp, Hot Surface Indicator		Appelez-nous	-
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
19	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.57
10A	WP3191050		Switch, Infinite (rear)   (Replaces: 3191050)			Immediately	$ 157.21
11A	WP8273993		Element (1800w) (rear)   (Replaces: 8273993)			Immediately	$ 258.96
1A	W10840249		Guide, Use & Care		Appelez-nous	-
1B	3192609		Wiring Diagram		Appelez-nous	-
1C	8304571		Instructions, Undercounter		Appelez-nous	-
NI	4455364		Bracket, Support				$ 86.47
NI	W11190493		Harness, Main				$ 211.30
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 140.81
NI	W11171891		Harness, Cooktop				$ 207.31
NI	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.85
NI	WP98997		Clip   (Replaces: 98997)				$ 10.48
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.80
