02 - Air Flow And Control

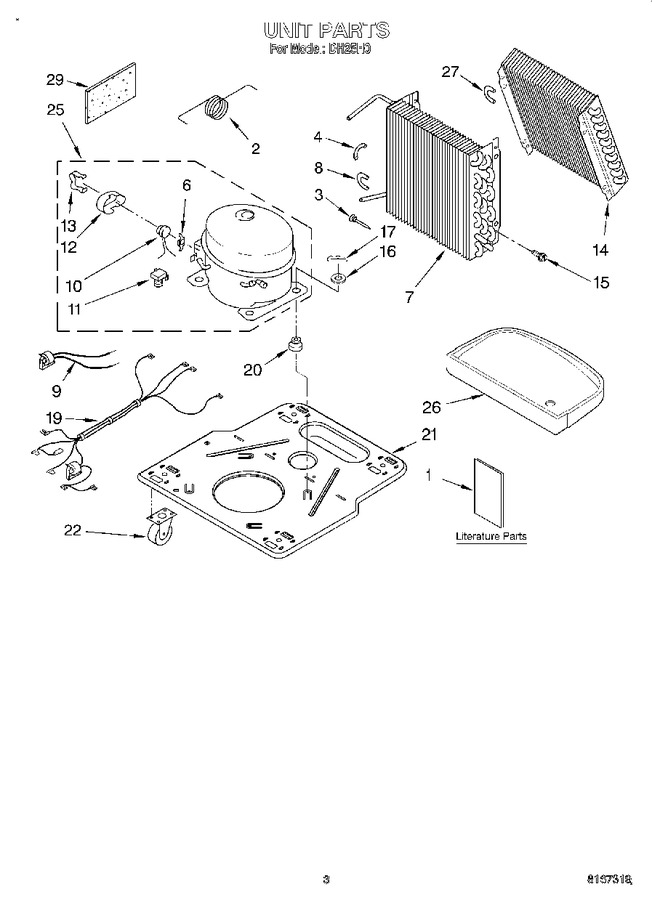

03 - Unit, Literature
04 - Cabinet
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1182182 | Use & Care Guide |
|
- | |||||
| 1 | LIT1182586 | Wiring Diagram |
|
- | |||||
| 2 | 1172076 | Tube, Restrictor (length 36.00``) |
|
- | |||||
| 3 | WP1162526 | Strainer (Replaces: 1162526) |
|
$ 75.98 | |||||
| 4 | 708532 | Bend, Return (2) |
|
- | |||||
| 6 | 950061 | Spring, Overload |
|
- | |||||
| 7 | 1181854 | Condenser |
|
- | |||||
| 8 | 708531 | Bend, Return (12) |
|
- | |||||
| 9 | 1168777 | Deicer, Bimetal |
|
- | |||||
| 10 | 1172077 | Overload, Protector |
|
- | |||||
| 11 | 950058 | Relay, Start |
|
- | |||||
| 12 | 950055 | Cover, Terminal |
|
- | |||||
| 13 | 950056 | Retainer, Cover |
|
- | |||||
| 14 | 1168726 | Evaporator |
|
- | |||||
| 15 | WP489069 | Screw, 8 X 1/2 (4) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 16 | 680975 | Washer |
|
- | |||||
| 17 | 24364001 | Clip, Compressor |
|
- | |||||
| 19 | 1168809 | Harness, Wire |
|
- | |||||
| 20 | 1168722 | Grommet (4) |
|
- | |||||
| 21 | 1168654 | Base |
|
- | |||||
| 22 | 1164241 | Caster (4) |
|
- | |||||
| 25 | 1164773 | Compressor (complete Assembly) |
|
- | |||||
| 26 | 1168761 | Pan, Drain |
|
- | |||||
| 27 | 854624 | Bend, Return (9) |
|
- | |||||
| 29 | 1162650 | Insulation, Restrictor Tube |
|
- |
