Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 83.56

2 W10776098 Cover, Backguard Special Order $ 122.23

3 W11164063 Console (stainless)   (Replaces: W10645854) In-Stock Immediately $ 466.76

4 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 13.25

5 WPW10648866 Control, Electronic   (Replaces: W10648866) In-Stock Immediately $ 374.44

6 W10278697 Shield, Vent In-Stock Immediately $ 165.00

7 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 13.28

8 W10692425 Assembly, Overlay (black)   (Replaces: W10776281) Special Order $ 807.36

9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 86.94

10 WPW10292689 Cover, Wire Filler   (Replaces: W10292689) Special Order $ 85.82

11 N/P Skin, Control Panel (not Serviced) Appelez-nous -
1A W10319111 Support, Backguard (black (right)) Special Order $ 43.80

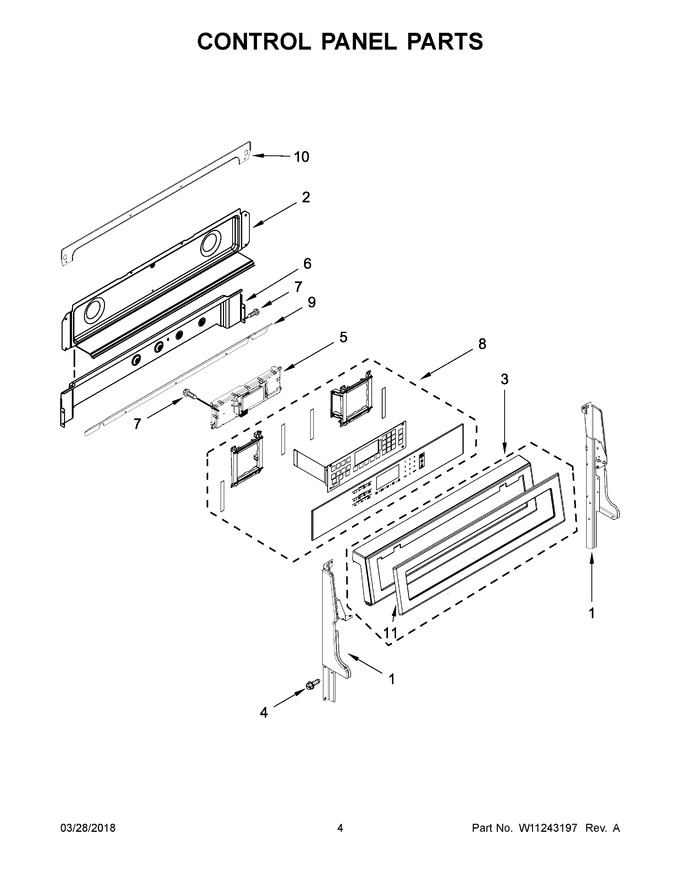

    View Diagram in Separate Window     Print Icon   Print Part List
