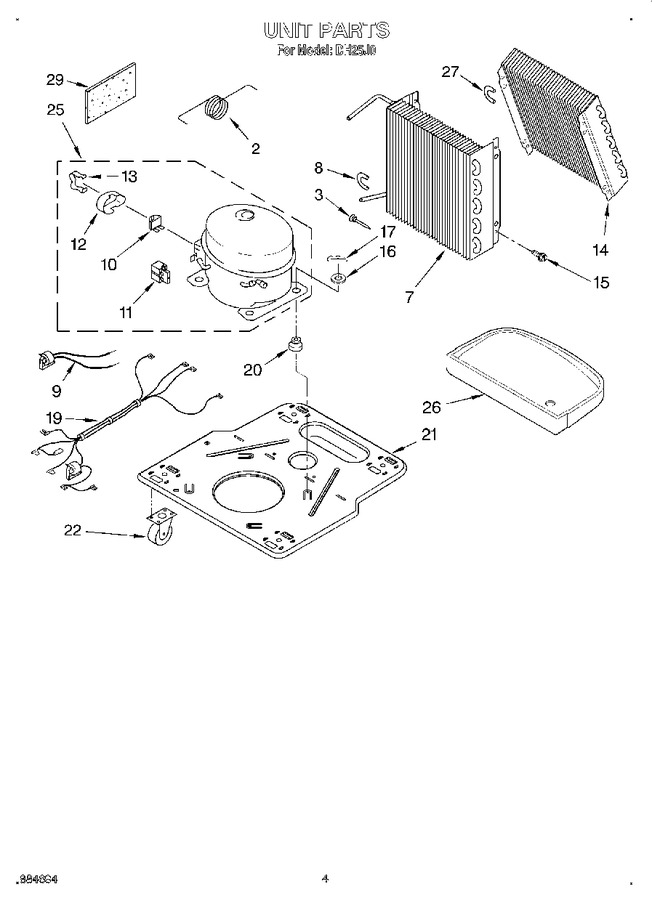

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1172076		Tube, Restrictor (length 36.00``)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
7	1182896		Condenser		Appelez-nous	-
8	708531		Bend Return (4)		Appelez-nous	-
9	1168777		Deicer, Bimetal		Appelez-nous	-
10	1182892		Overload, Protector		Appelez-nous	-
11	1182893		Relay, Start		Appelez-nous	-
12	1182890		Cover, Terminal		Appelez-nous	-
13	1182891		Retainer, Cover		Appelez-nous	-
14	1182898		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.56
16	680975		Washer		Appelez-nous	-
17	24364001		Clip, Compressor		Appelez-nous	-
19	1168809		Harness, Wire		Appelez-nous	-
20	1168722		Grommet (4)		Appelez-nous	-
21	1168654		Base		Appelez-nous	-
22	1164241		Caster (4)		Appelez-nous	-
25	1182889		Compressor, (complete Assembly)		Appelez-nous	-
26	1168761		Pan, Drain		Appelez-nous	-
27	855199		Bend, Return (4)		Appelez-nous	-
29	1162650		Insulation, Restrictor Tube		Appelez-nous	-
