SELECT A DIAGRAM

01 - Front Cover


02 - Air Flow And Control, Literature

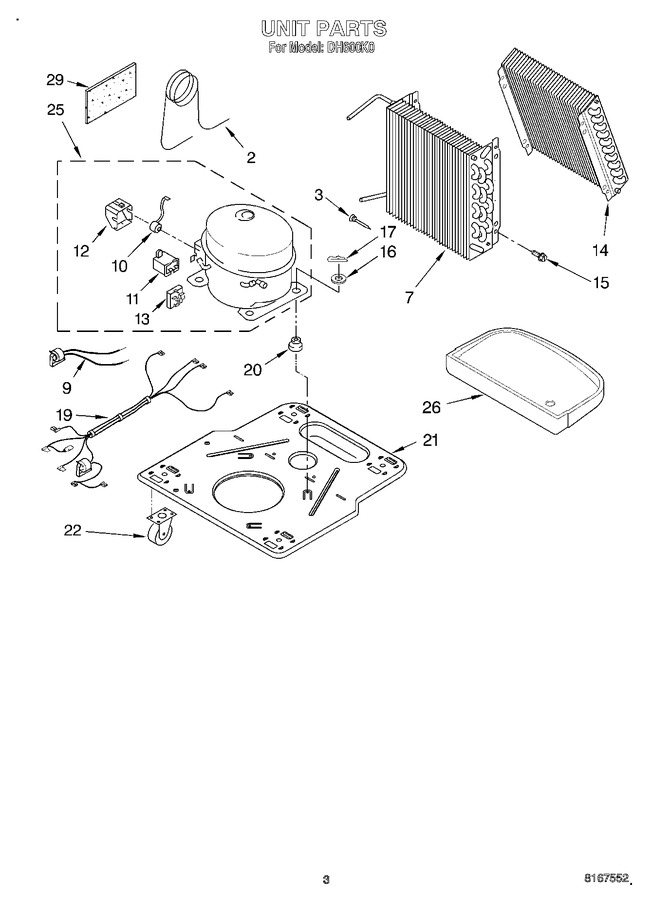

03 - Unit


04 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1185345		Tube, Restrictor (length 36.00``)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
7	1184770		Condenser		Appelez-nous	-
9	1183833		Deicer, Bimetal		Appelez-nous	-
10	1185293		Overload, Protector		Appelez-nous	-
11	1185344		Capacitor		Appelez-nous	-
12	1182781		Cover, Terminal		Appelez-nous	-
13	1185343		Relay, Start		Appelez-nous	-
14	1185204		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.56
16	680975		Washer		Appelez-nous	-
17	24364001		Clip, Compressor		Appelez-nous	-
19	1185307		Harness, Wire		Appelez-nous	-
20	1168722		Grommet (4)		Appelez-nous	-
21	1168654		Base		Appelez-nous	-
22	1164241		Caster (4)		Appelez-nous	-
25	1185234		Compressor, (complete Assembly)		Appelez-nous	-
26	1168761		Pan, Drain		Appelez-nous	-
29	1184625		Seal, Anti Rub (restrictor Tube)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
