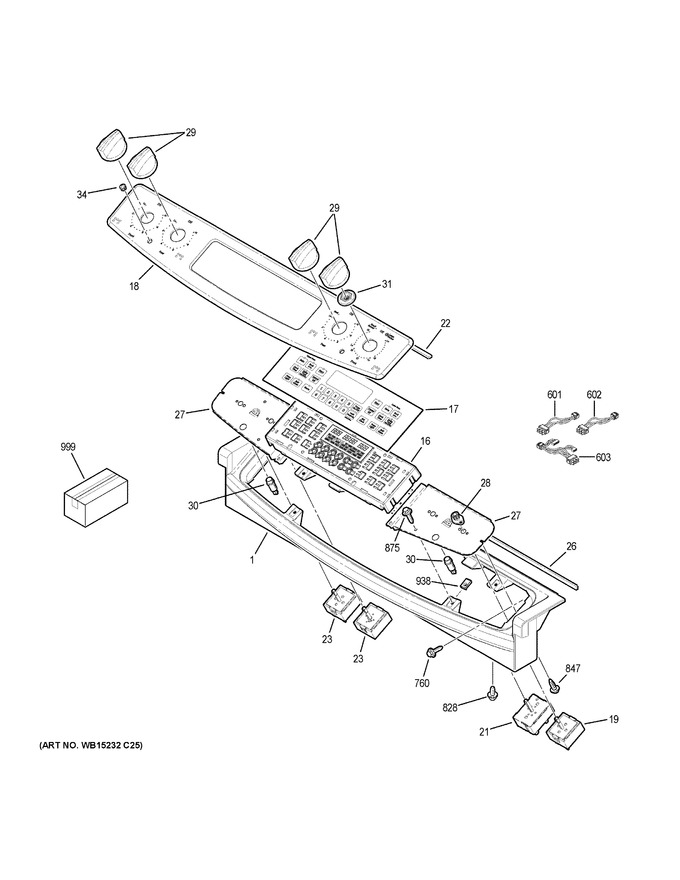

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	229C6495P001		Label Wire Diagram		Appelez-nous	-
1	WB36T10668		Panel Cntl Asm		Appelez-nous	-
16	WB27X25361		Control Board T012 Ele		Appelez-nous	-
17	WB07X21416		Faceplate Graphics (wh)		Appelez-nous	-
18	WB27X20074		Faceplate (scr)		Appelez-nous	-
19	WB24X26408		Switch Infinite Control		Appelez-nous	-
21	WG02F04017		Inf Switch Control (wm)   (Replaces: WB24T10012)				$ 58.38
22	WB02X10744		Gasket Faceplate		Appelez-nous	-
23	WG02F00761		Inf Switch Control (2000w)   (Replaces: WB24T10026)			Immediately	$ 53.80
26	WG02F05540		Control Panel Gasket   (Replaces: WB02X10742)				$ 42.97
27	WB27X20071		Insert Cntl Pnl Rt		Appelez-nous	-
27	WB27X20070		Insert Cntl Pnl Lt		Appelez-nous	-
28	WB02T10047		Crystal Mount		Appelez-nous	-
29	WB03T10334		Knob Asm		Appelez-nous	-
30	WG02F00904		Light Indicator   (Replaces: WB25T10056)				$ 11.44
31	WG02L01449		Crystal Retainer   (Replaces: WB02T10046)			Immediately	$ 8.58
34	WG02F00887		Lens Snap-in   (Replaces: WB25T10022)				$ 4.20
601	WB18X26406		Harness Wire Inf Control		Appelez-nous	-
602	WB18X20963		Harness Wire Cntl		Appelez-nous	-
603	WB18X26407		Harness Wire Infinite		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
828	WB1X537		Screw		Appelez-nous	-
847	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
938	WB1K5209		Clip		Appelez-nous	-
999	49-80597		Manual U&c Tip Sheet		Appelez-nous	-
999	31-10781		Pm Install Instructions		Appelez-nous	-
999	49-80690		Pm Owners Manual		Appelez-nous	-
999	31-10836		Pm Install Instructions		Appelez-nous	-
999	31-10651		Instructions Install		Appelez-nous	-
999	31-17206		Pm Manual Mini & Wd Asm		Appelez-nous	-
