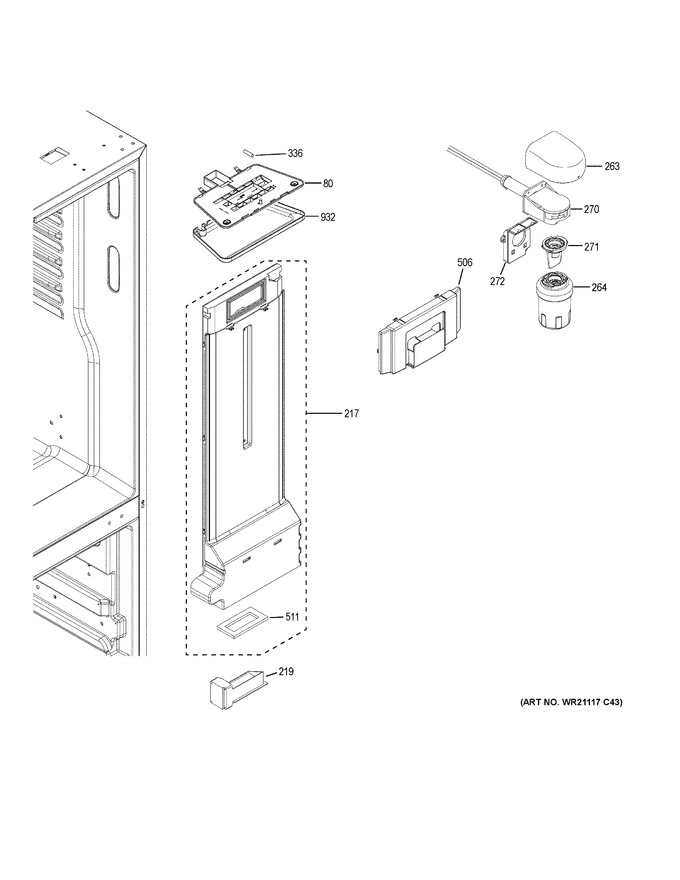

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 80 | WR17X24894 | Housing Light Asm |
|
- | |||||
| 217 | WR14X26409 | Ff Air Tower 30 |
|
- | |||||
| 219 | WR01F00017 | Damper Asm Motorized (Replaces: WR60X10239) |
|
Immediately | $ 174.47 | ||||
| 219 | WR60X27396 | Damper Asm |
|
- | |||||
| 263 | WR17X28086 | Cover Water Filter |
|
- | |||||
| 264 | PMMWF | Water Filter Canister (Replaces: MWFP) |
|
Immediately | $ 78.60 | ||||
| 270 | WR17X26447 | Filter & Insulation Asm |
|
- | |||||
| 271 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 17.97 | ||||
| 272 | WR02X24816 | Spacer Water Filter |
|
- | |||||
| 336 | WR01F01730 | Sensor Temp Ff (Replaces: WR55X10025) |
|
Immediately | $ 14.66 | ||||
| 506 | WR14X29199 | Fresh Food Air Tower Grill |
|
- | |||||
| 511 | WR14X24747 | Gasket Tower Ff |
|
- | |||||
| 932 | WR17X25143 | Cover Led Top |
|
- |
