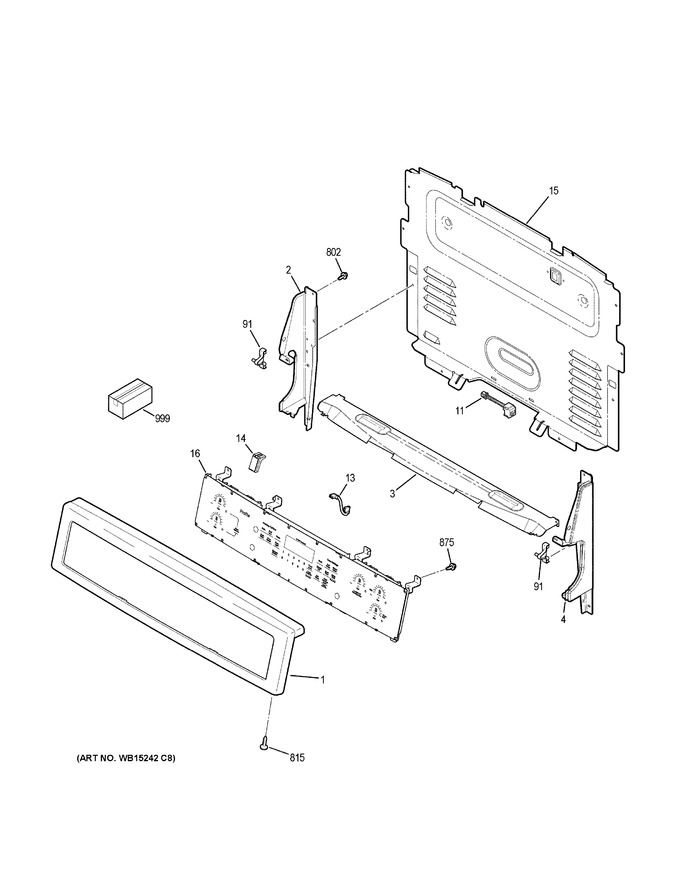

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB07X25111 | Trim Control Asm (gy) |
|
- | |||||
| 1 | WB07X32019 | Control Panel Trim Asm Gy |
|
- | |||||
| 1 | 229C6458P001 | Label Wire Diagram |
|
- | |||||
| 2 | WB07X29534 | End Plate Lh Dg |
|
- | |||||
| 3 | WB34X28565 | Backguard Shield Heat |
|
- | |||||
| 4 | WB07X29535 | End Plate Rh Dg |
|
- | |||||
| 11 | WB27X30706 | Rj45 Connector And Harness |
|
- | |||||
| 13 | WB18X30704 | Jumper |
|
- | |||||
| 14 | WB27X29798 | Board Wifi Cat Module |
|
- | |||||
| 15 | WB34X29576 | Control Panel Back Cover |
|
- | |||||
| 16 | WB27X30403 | Oven Control And Overlay Asm White Led |
|
- | |||||
| 91 | WB10T10116 | Pin Rangetop Hinge |
|
- | |||||
| 802 | WB01T10016 | Screw 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 815 | WB1K60 | Screw 8-18 |
|
- | |||||
| 875 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 999 | 31-10617 | Instruction Install |
|
- | |||||
| 999 | 49-80769 | Pm Quick Guide |
|
- | |||||
| 999 | 31-17188 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 31-11013 | Pm Wi Fi Instructions |
|
- | |||||
| 999 | 49-80597 | Manual U&c Tip Sheet |
|
- |
