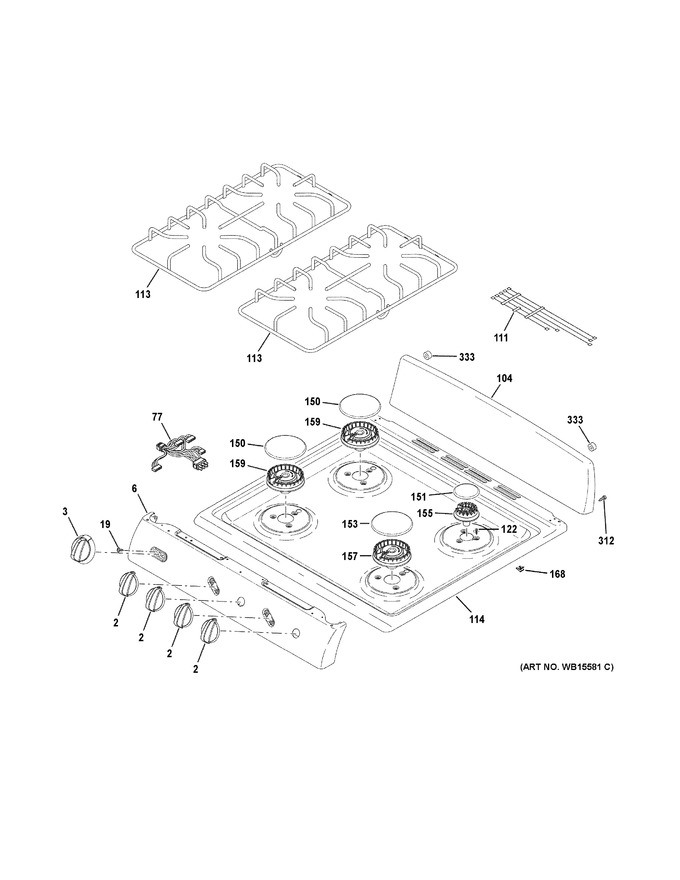

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB03X31144 | Knob Minivalve White |
|
- | |||||
| 3 | WB03X31145 | Knob Thermostat White |
|
- | |||||
| 6 | WB36X31147 | Manifold Panel |
|
- | |||||
| 19 | WB1K8 | Screw Thermostat |
|
- | |||||
| 77 | WB18X31142 | Harness Main |
|
- | |||||
| 104 | WB36X31182 | Backsplash |
|
- | |||||
| 111 | WB18X30975 | Electrode Top & Harness Hv |
|
- | |||||
| 113 | WB31X31141 | Grate Top |
|
- | |||||
| 114 | WB62X31156 | Range Top 50 |
|
- | |||||
| 116 | WB35X32263 | Seal Backsplash |
|
- | |||||
| 117 | WB34X32262 | Bracket Backsplash |
|
- | |||||
| 118 | WB34X32264 | Bracket Backsplash |
|
- | |||||
| 122 | WB01X24735 | Ckt Screw |
|
- | |||||
| 150 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 151 | WB16X29450 | Asm. Cap, Burner Small V2 |
|
- | |||||
| 153 | WG02F02915 | Cap-burner Large (black) (Replaces: WB29K10006) |
|
$ 25.73 | |||||
| 155 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 157 | WB16X24723 | Burner, Large V2 |
|
- | |||||
| 159 | WS01F02537 | Cap-burner Med (black) (Replaces: WB29K10001) |
|
Immediately | $ 12.86 | ||||
| 168 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 312 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 333 | WB01K10020 | Spacer-handle |
|
- |
