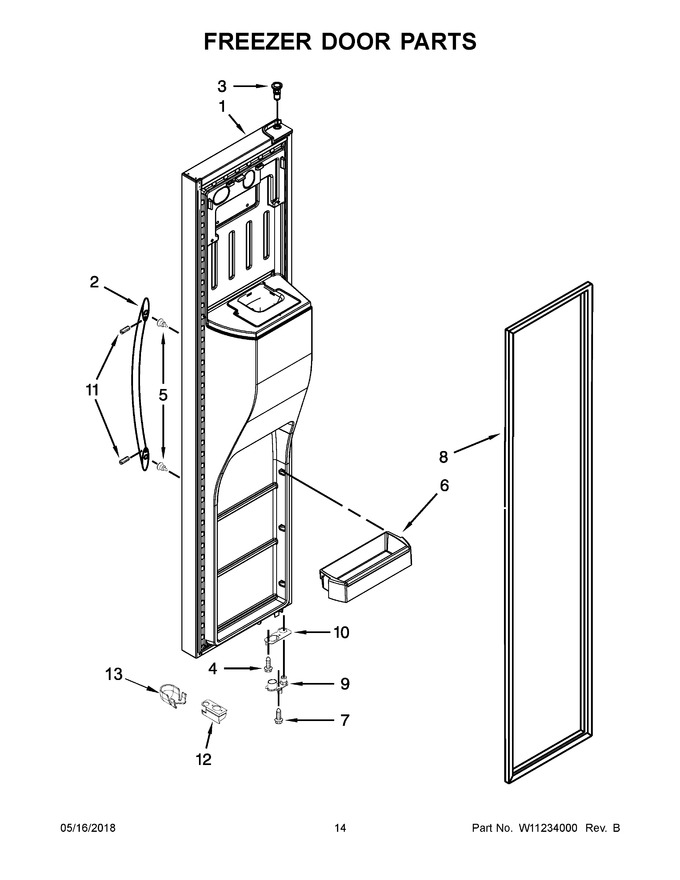

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10795741 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (white) (Replaces: W10795741) |
|
- | |||||
| 2 | W10848410 | Handle (white) (Replaces: W10713677) |
|
$ 183.35 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 6 | WPW10296857 | Bin, Door (Replaces: W10296857) |
|
$ 73.18 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 8 | WPW10247885 | Gasket, Door (beige) (Replaces: W10247885) |
|
$ 312.36 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 11.57 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 62.29 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 21.11 | |||||
| 13 | W10323148 | Cover, Wire |
|
$ 38.03 | |||||
| 12A | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 6.80 | |||||
| 1A | W10795740 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2A | W10899551 | Handle (stainless) (Replaces: W10678291) |
|
Immediately | $ 169.94 | ||||
| 8A | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 303.54 | |||||
| 9A | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 11.86 |
