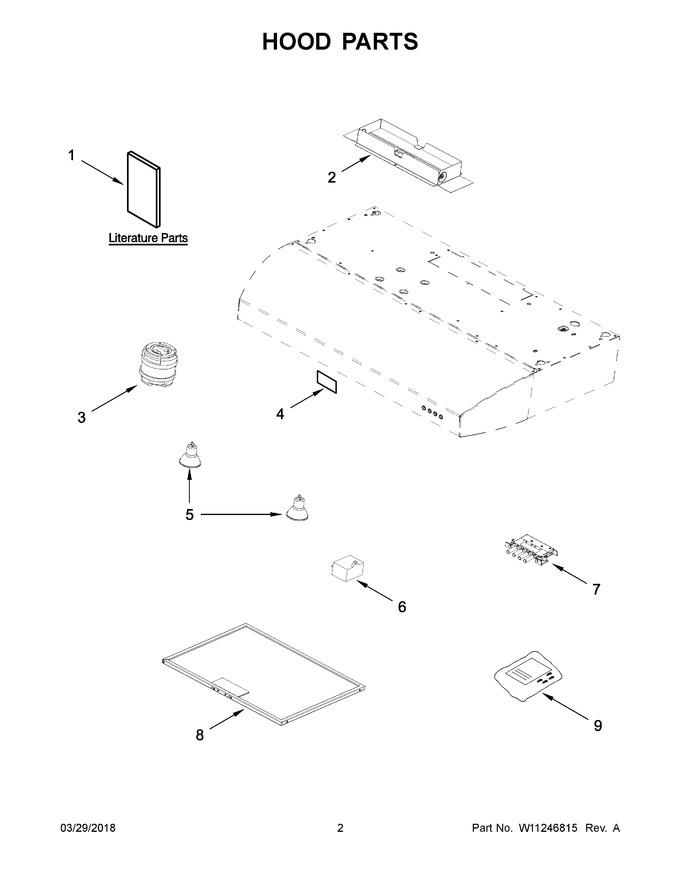

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320576 | Use & Care Guide |
|
- | |||||
| 2 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 3 | W11246397 | Assembly, Blower Motor (Replaces: W11245996) |
|
- | |||||
| 4 | W11178521 | Badge, Namplate (grey) (Replaces: W10434972) |
|
Immediately | $ 58.63 | ||||
| 5 | W11800238 | Lamp, Led (Replaces: W11245984) |
|
Immediately | $ 78.87 | ||||
| 6 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 91.53 | ||||
| 7 | W11245985 | Control, Electronic |
|
$ 166.21 | |||||
| 8 | W11246395 | Filter, Grease (Replaces: W11245990) |
|
$ 78.45 | |||||
| 9 | W11245991 | Hardware, Installation |
|
- | |||||
| 6A | W11245981 | Capacitor (15 Mf) |
|
$ 61.16 | |||||
| 6B | W11245988 | Capacitor (12 Mf) |
|
- |
