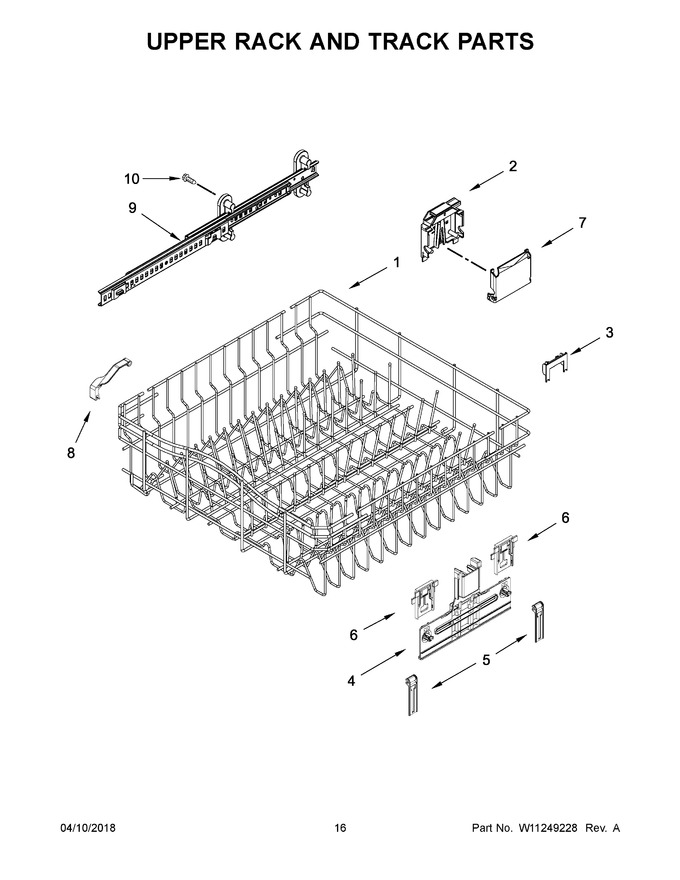

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10312792 | Dishrack, Upper (Replaces: W10312792) |
|
Immediately | $ 195.08 | ||||
| 2 | WPW10588164 | Housing Adjuster (includes Spring & Lever) (left Hand) (Replaces: W10588164) |
|
Immediately | $ 17.91 | ||||
| 3 | WPW10250160 | Clip, Adjuster (Replaces: W10250160) |
|
Immediately | $ 46.49 | ||||
| 4 | WPW10546503 | Adjuster Assembly (Replaces: W10546503) |
|
Immediately | $ 40.43 | ||||
| 5 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 32.66 | ||||
| 6 | WPW10195840 | Positioner, Adjuster (Replaces: W10195840) |
|
Immediately | $ 46.56 | ||||
| 7 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 6.85 | ||||
| 8 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 28.40 | |||||
| 9 | W11259785 | Track Assembly (left Hand) (Replaces: W10914015) |
|
Immediately | $ 86.07 | ||||
| 10 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 69.17 | ||||
| 2A | WPW10588165 | Housing Adjuster (includes Spring & Lever) (right Hand) (Replaces: W10588165) |
|
Immediately | $ 53.33 | ||||
| 9A | W11259786 | Track Assembly (right Hand) (Replaces: W10914016) |
|
Immediately | $ 92.03 |
