Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10574520 Lid (includes Insulation) Special Order $ 270.35

2 WPW10142283 Screw   (Replaces: 3-80732-007) Special Order $ 9.30

3 W10712378 Cover, Screw Handle Special Order $ 15.91

4 W10852738 Handle, Door (white)   (Replaces: W10711161) Special Order $ 35.60

5 W10914248 Liner, Door   (Replaces: W10673928) Special Order $ 359.54

6 4-35260-006 Gasket, Door (white) In-Stock Immediately $ 306.50

7 W11428492 Badge (white)   (Replaces: W11046244) Special Order $ 75.21


    View Diagram in Separate Window     Print Icon   Print Part List

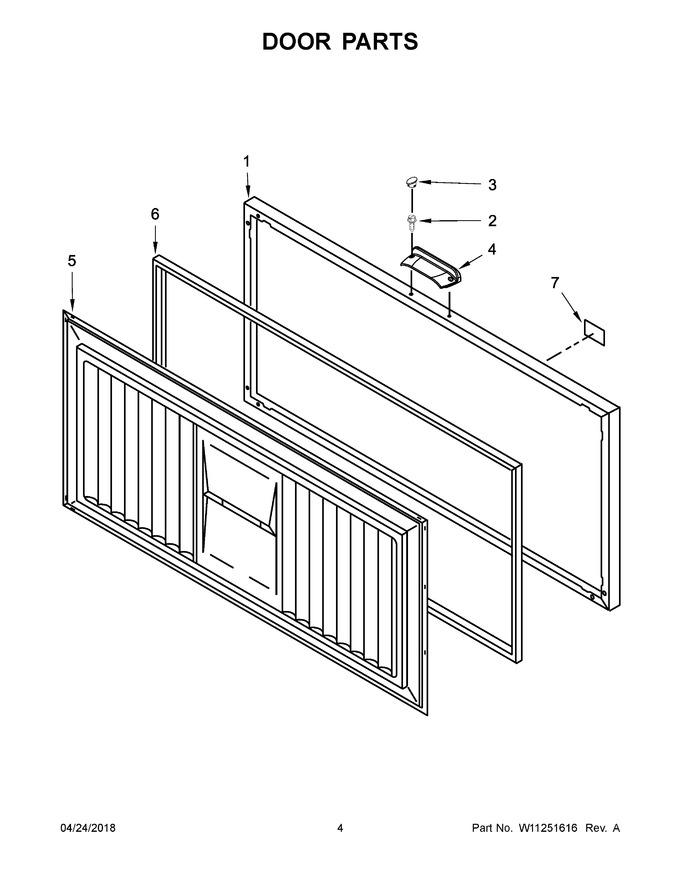

Diagram for AZC31T22DW01
