01 - Cover Sheet

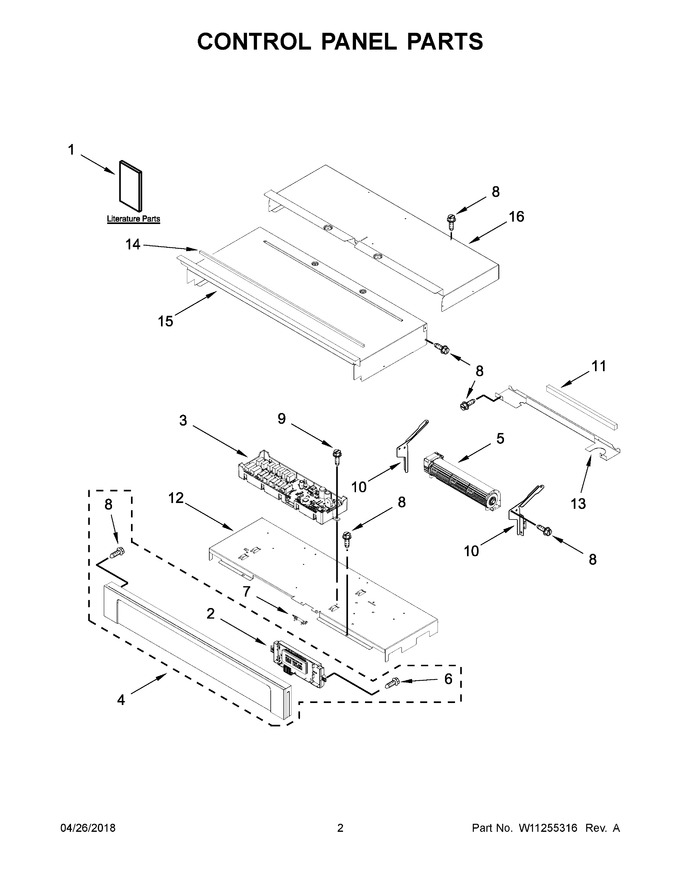

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10795444 | Guide, Use & Care |
|
- | |||||
| 2 | W10803991 | Interface (maxwell), User Board (Replaces: W10752315) |
|
Immediately | $ 378.04 | ||||
| 3 | W10839510 | Control, Main (Replaces: W10758877) |
|
Immediately | $ 415.03 | ||||
| 4 | W10864143 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10812327) |
|
$ 499.15 | |||||
| 5 | W11713858 | Blower (Replaces: W11200130) |
|
Immediately | $ 313.73 | ||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 7.88 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10545255) |
|
Immediately | $ 25.43 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10283005 | Tray, Electronic |
|
- | |||||
| 13 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 14 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 15 | W10318193 | Chassis, Cover Top Front 27 |
|
$ 122.47 | |||||
| 16 | W10694466 | Chassis, Cover Top Back 27 |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10674133 | Instructions, Installation |
|
- | |||||
| 1B | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1C | W10796080 | Sheet, Tech |
|
- | |||||
| 4A | W10864145 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W10812328) |
|
$ 455.34 | |||||
| 4B | W10864146 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10812329) |
|
$ 640.94 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 19.01 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | W11157775 | Harness, Eol (mrc) |
|
$ 208.52 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 107.08 | |||||
| NI | W11136114 | Harness, Main |
|
$ 220.30 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | WP4450952 | Conduit, Single (Replaces: 4450952) |
|
$ 216.88 |
