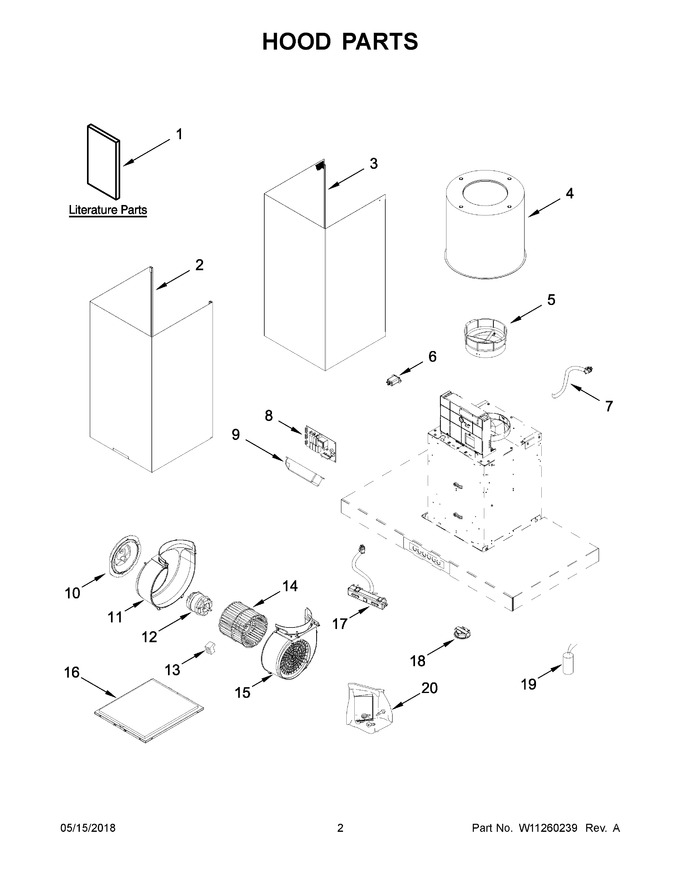

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11160327 | Use And Care Guide |
|
- | |||||
| 2 | W11260655 | Chimney, Lower |
|
$ 343.68 | |||||
| 3 | W11260656 | Chimney, Upper |
|
$ 605.68 | |||||
| 4 | W11197817 | Filter, Charcoal |
|
- | |||||
| 5 | W11260619 | Damper, Hood |
|
- | |||||
| 6 | W11260650 | Filter, Noise |
|
$ 73.48 | |||||
| 7 | W11260676 | Harness, Main |
|
$ 105.96 | |||||
| 8 | W11100663 | Variator, Electronic (Replaces: W11099805) |
|
$ 247.18 | |||||
| 9 | W11282989 | Driver, Led (Replaces: W10716819) |
|
$ 237.02 | |||||
| 10 | W11260649 | Grille, Blower |
|
- | |||||
| 11 | W11260665 | Conveyor (left Half) |
|
- | |||||
| 12 | W11260648 | Motor, Fan |
|
$ 319.86 | |||||
| 13 | W11260681 | Cover, Cable Box |
|
- | |||||
| 14 | W11260620 | Blade, Fan |
|
$ 132.06 | |||||
| 15 | W11260663 | Conveyor (right Half) |
|
- | |||||
| 16 | W11261149 | Filter, Grease (Replaces: W11260651) |
|
$ 316.13 | |||||
| 17 | W11261150 | Control, Electronic (Replaces: W11260661) |
|
$ 320.30 | |||||
| 18 | W11260654 | Light, Led |
|
$ 135.68 | |||||
| 19 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 20 | W11260666 | Hardware, Installation |
|
- |
